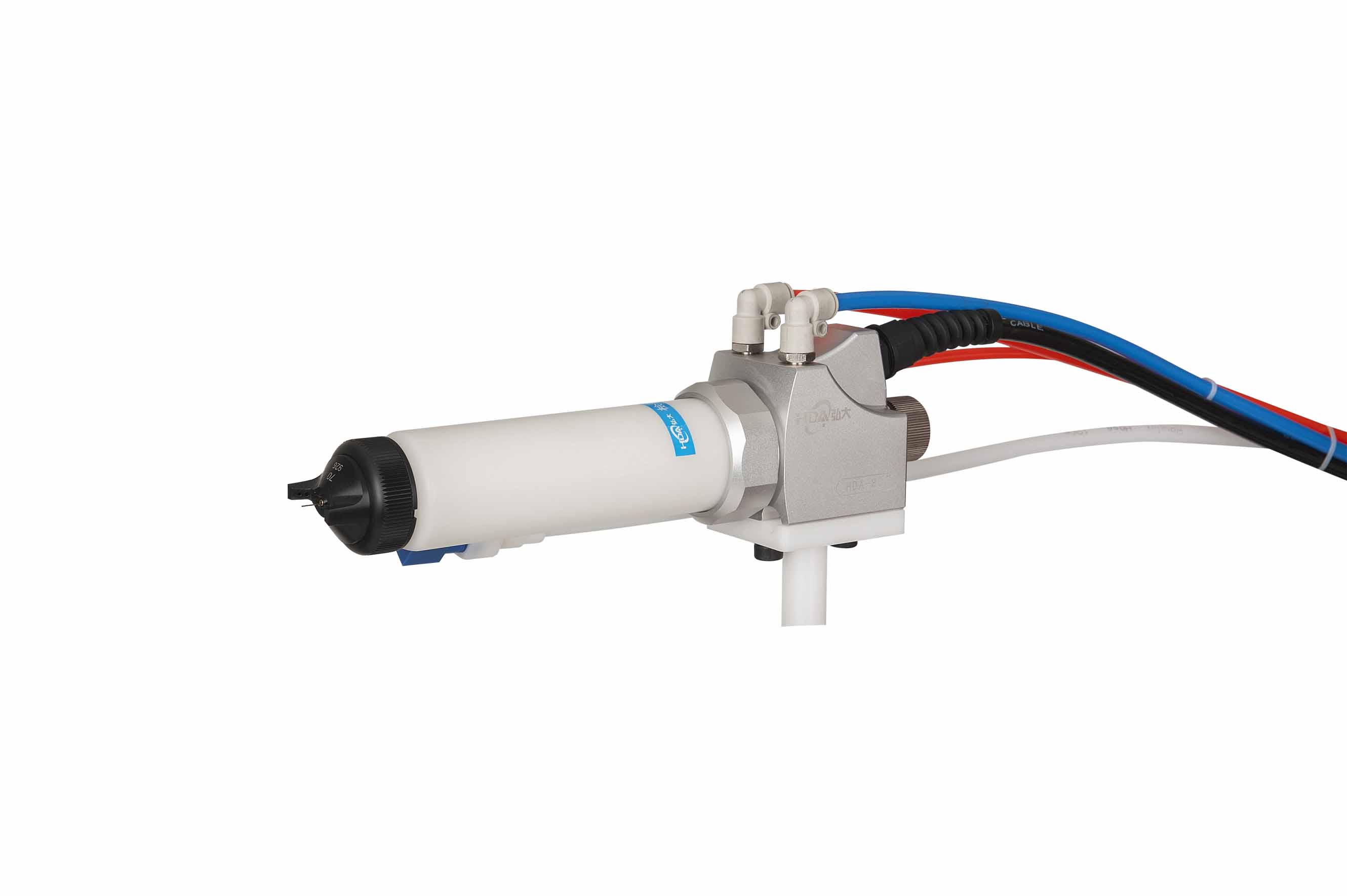

HDA-80T automatic liquid electrostatic paint spray gun characteristics:
An automatic electrostatic spray gun with simple structure and versatility;

Characteristic：

1 、 light weight, easy to operate, high safety, durable, save paint, apply to all kinds of conductive workpiece coating;
2 、 electrostatic generator can adjust the current value to adapt to a variety of different coatings;
3, the use of electrostatic painting principle, can greatly improve the ratio of general air spray painting utilization rate, reduce the relative solvent and air consumption greatly, to realize the automation of production management, production, data integration;

hig voltage		DC-80KV
spray gun length		570mm
weight		1.5kg without cable
ccable length		3M-15M

HDA-80T automatic liquid electrostatic spray gun parameter:

HDA-80T automatic electrostatic spray gun is one of the most widely used and widely used spray guns. It is used in the automatic spraying system of reciprocating machines;

Use liquid electrostatic spray gun needs to be satisfied
First, the paint and the workpiece must be conductive, and the workpiece to ensure effective grounding, measuring the best paint resistance value of 20 ~ 70mΩ-cm.
Second, paint viscosity, the use of viscosity measurement cup, the best value of 9 to 30 seconds.

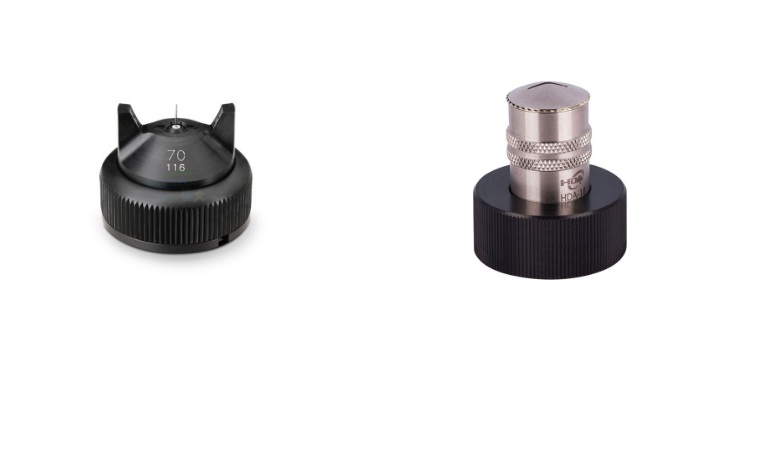

Third, the choice of nozzle, fan nozzle or circular nozzle.
If you have technical questions before purchasing, please call Hongda HDA, we will arrange technical service for you!

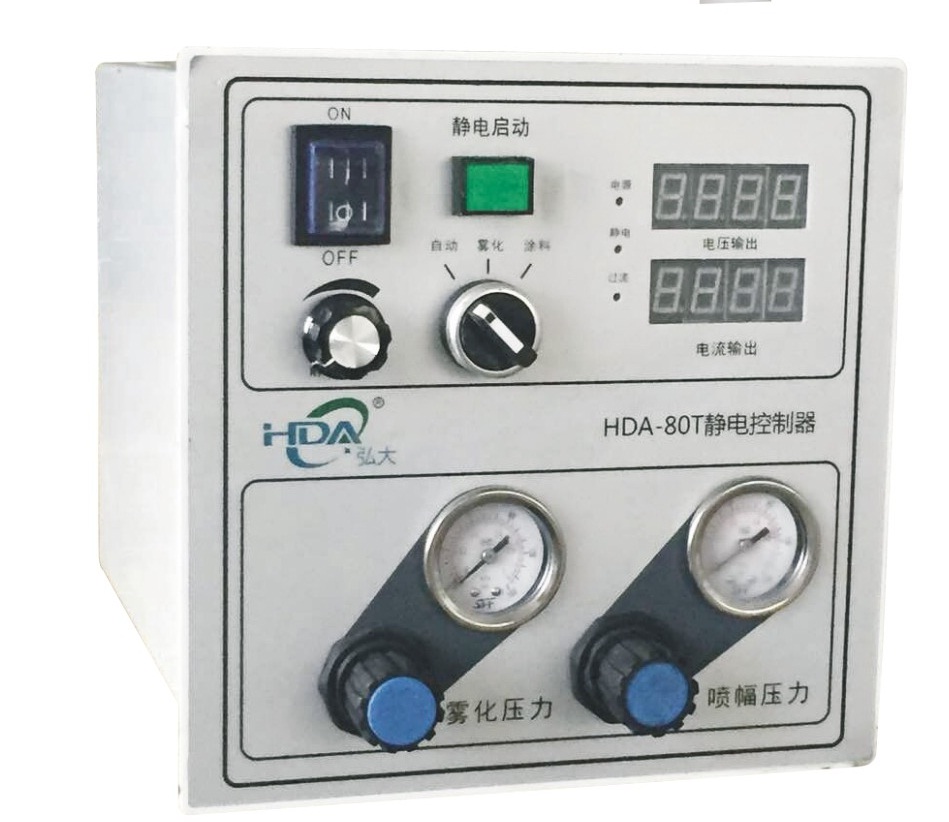

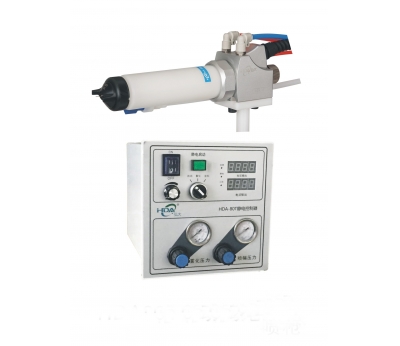

HONGDA SPRAY HDA-80T electrostatic controller , electrostatic control, paint atomizaition scope safety adjustment device

high voltage		DC-80 KV
high voltage adjustment		-15 KV-80 KV Unsection type
high voltage switch		Automatic & Manual
supply voltage		AC 110 V-240 V 50/60 HZ
Dimension		330 X 240 X 240
weight		9.5 kgs

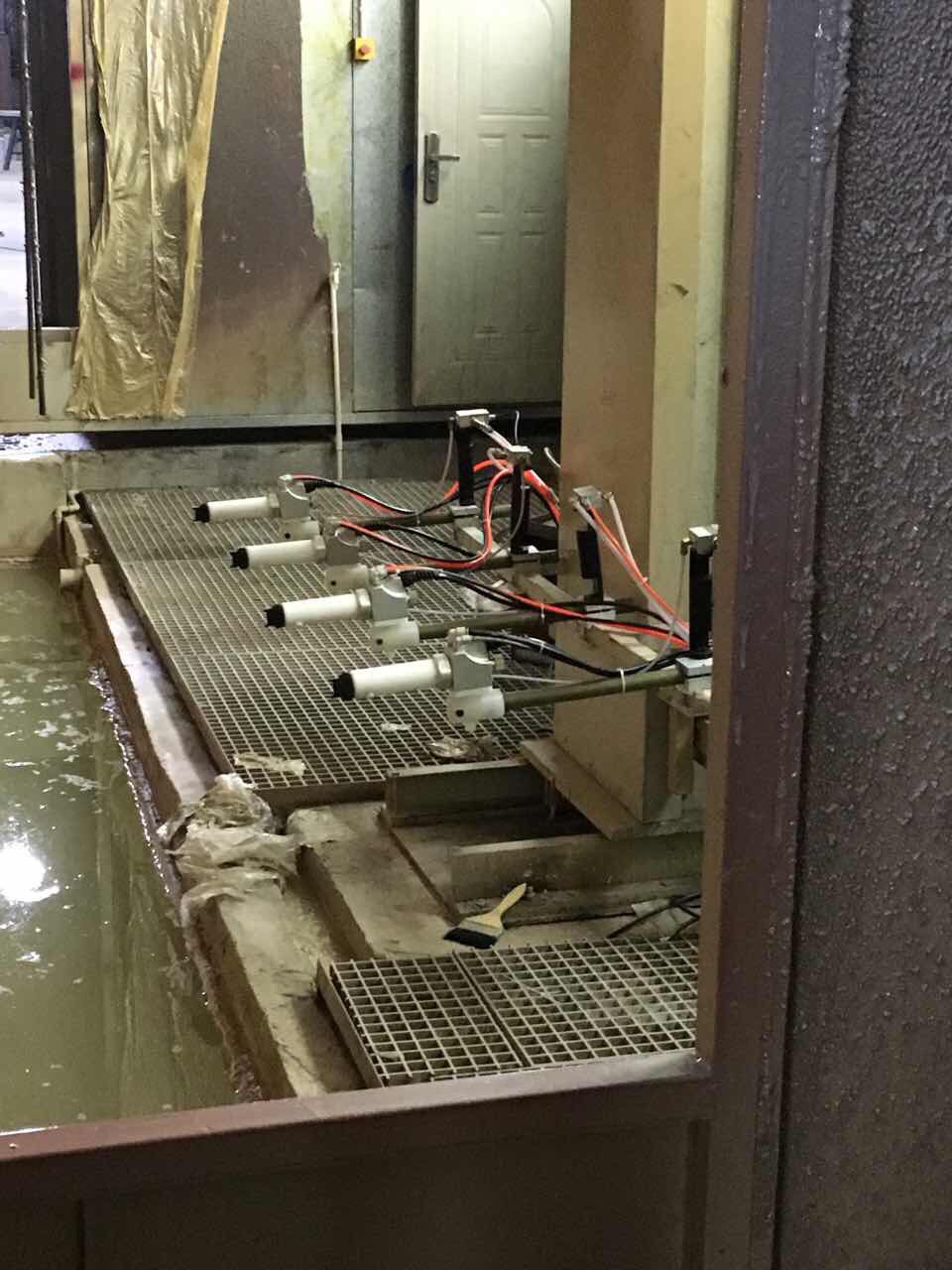

Optional: electrostatic spray gun used for reciprocating machines and mechanical hand electrostatic spraying gun

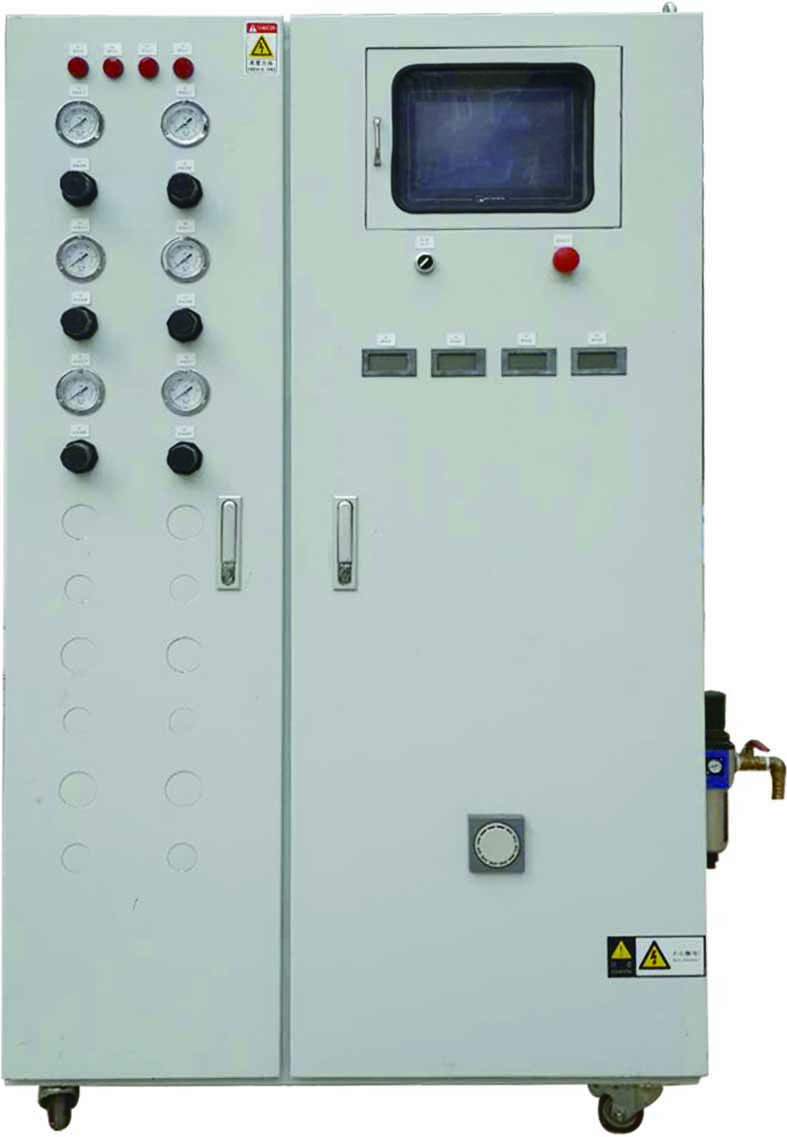

Main control box:
The main control box, set spraying, reciprocating machine, paint supply, electrostatic voltage switch, system interlock, alarm lamp functions, convenient operation, equipped with a PLC automatic control system, automatic detection, gap height, to achieve a more accurate spraying.

Controller oven for HONGDA HDA-80T automatic electrostatic spray gun

1) spinning wheel electrostatic spray gun unit speed, pressure adjustment, forming air adjustment

1） 2) electrostatic high voltage switching off adjustment

2） 3) function of paint switch gun

3） 4) electrostatic switch and the size of the regulating voltage

5) manual / automatic switching function

in case

Contact electrostatic spray gun supplier:

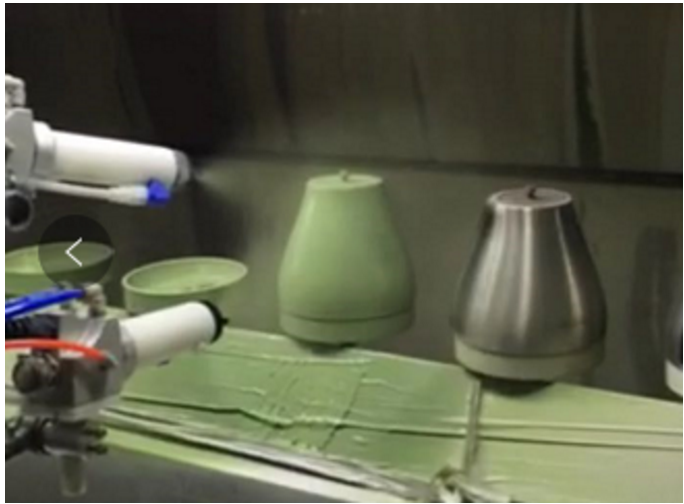

Demo performance:
