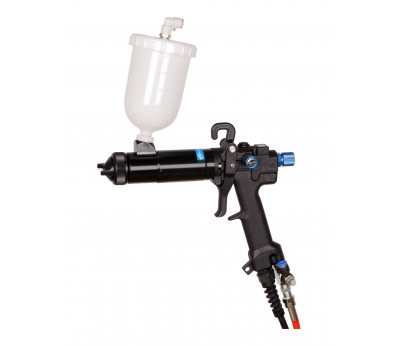

HDA-100 Laboratory electrostatic spray gun

HONGDA HDA-100 Laboratory electrostatic liquid spray gun

ffective & Ecological

Fulfills high transfer efficiency

easy clean & olor changing

using for sample coating


National service hotline:86-13926859125

HONGDA SPRAY DHA-100 laboratory electrostatic spray gun


HONGDA SPRAY HDA-100 laboratory electrostatic spray gun

Max voltage DC-60KV
hydraulic pressure Max 0-0.3Mpa
standard 0.6Mpa
air pressure Max 0.05-0.5Mpa
standard 0.06Mpa
       air consumption 350Nl/mm
       ari bore screw bore PF 1/4
       paint bore screw bore PF 1/4
       Length 248mm
      supply cable (standard) 5M/6M/8M/10M
weight(without nozzle & cables) 480g

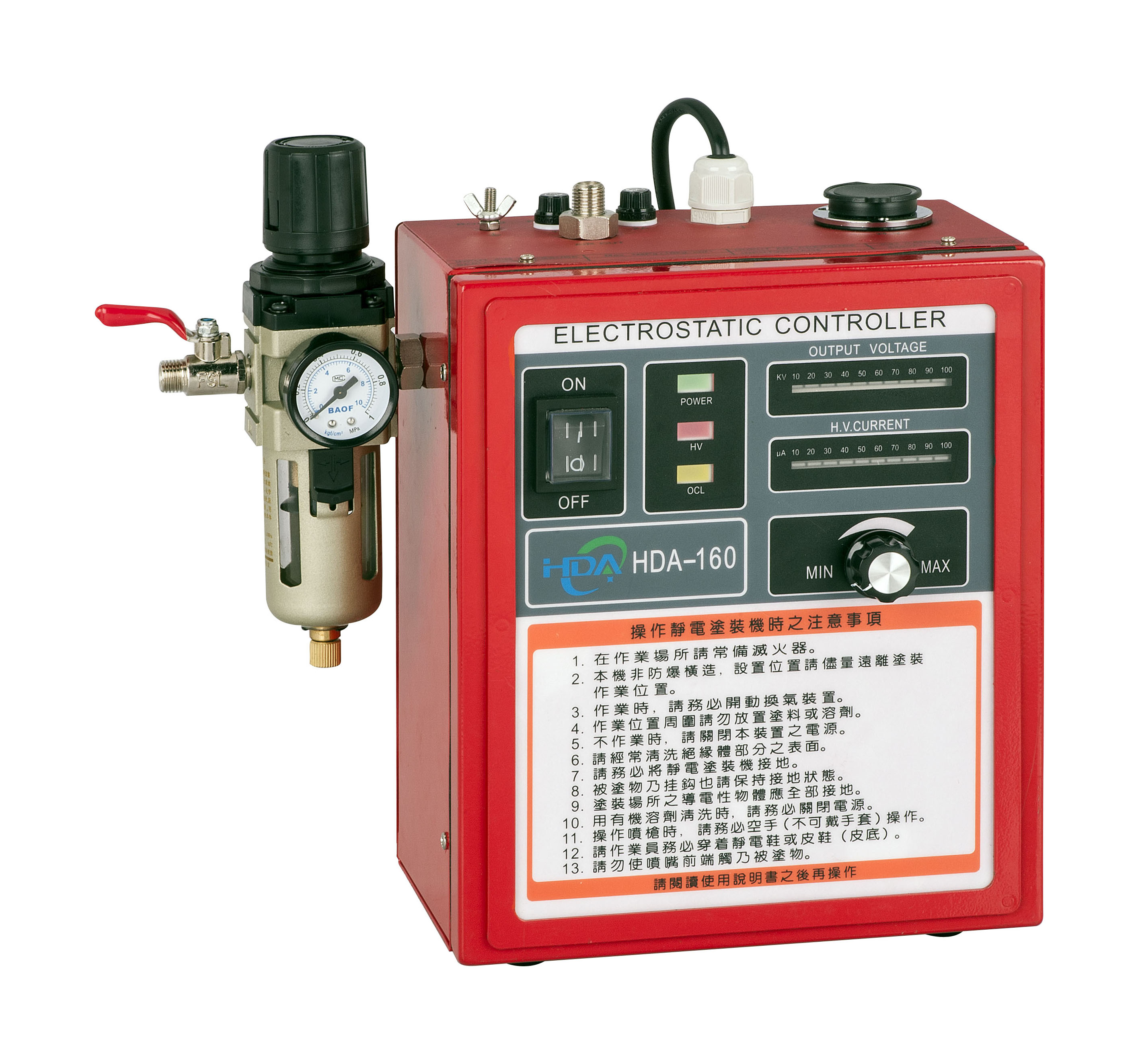

HDA-100 electrostatic controller


Electrostatic spray gun | www.hdaspraygun.com

Output adjustment  -15-60KV
high voltage switch Air flow switch
        supply voltage AC110V-220VHZ
        dimension 220X145X270
   application environment temperature 0-45℃
 dampness 20-80℃
        weight 6.5kgs without holder

The high pressure curve is set up, and the output DC high voltage is stable. After fine atomization, the coated particles produce electrostatic surround effect under the influence of the electrostatic field force, thus improving the coating rate (coating efficiency);
2 、 adopt electronic switch mode, over current, automatic power off and discharge, start buzzer alarm, high safety;
3, according to the spraying conditions, stepless adjustment of the high voltage, suitable for all types of work and coating, convenient voltage trimming requirements;

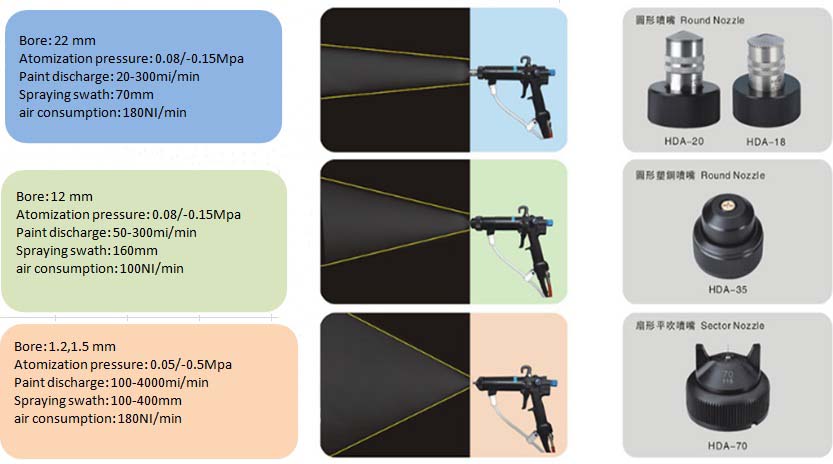

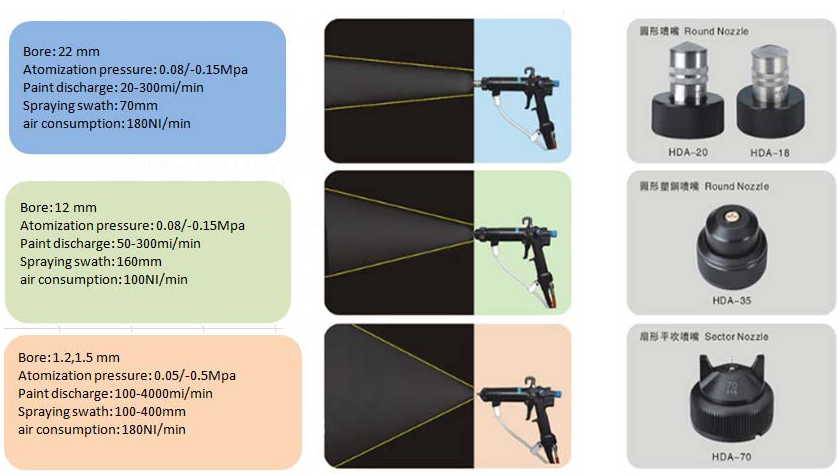

electrostatic spray gun's nozzle | www.hdaspraygun.comelectrostatic spray gun's nozzle

HDA electrostatic spray gun | www.hdaspraygun.com
