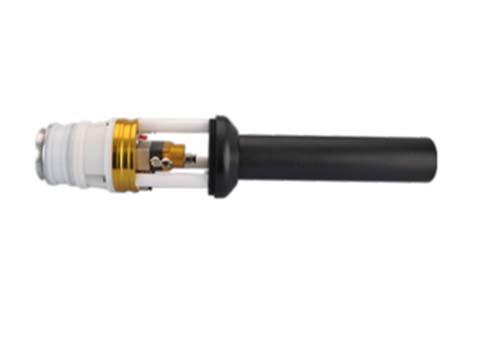

HDA rotary bell electrostatic spray gun parts

HDA rotary bell electrostatic spray gun parts

hongdaspray automatic PLC control electrostatic spray gun

National service hotline:+86 13622624429

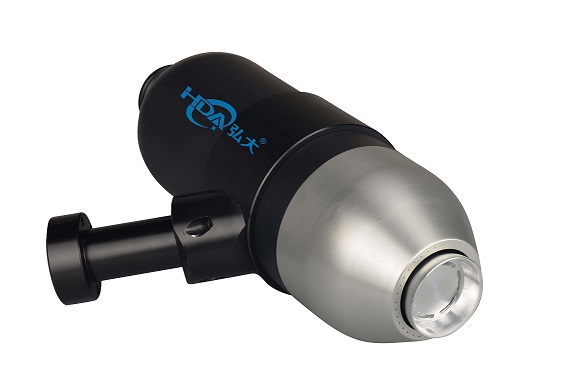

HONGDA rotary bell electrostatic spray gun , automatic PLC contorl electrostatic paing spray coating gun

pplicable to hardware, lighting, furniture, gold spraying, oil tank, frame and other metal products;
Applicable coatings: two kinds of paint, such as cyanuric acid, benzene, methylamine, acrylic resin, polyurethane, metal luster paint, water paint, etc.;
High performance, high atomization, high coating;
Apply to electrostatic liquid transparent paint, color paint, metal paint and other paint spraying;

hongda spray automatic PLC contros electrostatic spray gun


igh performance, high atomization, high coating,
Apply to electrostatic liquid transparent paint, color paint, metal paint and other paint spraying;

1, model: HDA-60
2, work pressure (MAX),:DC, -80KV, can be adjusted.
3 、 high voltage generator: external type
4, rotational speed (no-load): 80000rpm MAX.
5 、 drive form: air bearing motor
6, weight: 2.9KG
Air pressure:
1, turbine motor: 550ml/min - 42000rpm (400l/min)
2, air bearings: 60l/min (normal)
3, forming air: 170 - 540l/min (normal)
4, air brake: 100l/min (normal)
Characteristics of electrostatic spraying machine for air operated rotary cup for HDA-60 mechanical arm:
1. Coating pressure: 0.69MPA max.
2, paint flow: 25-600cc./min
3, high performance air turbine motors: long life design
4, cup: 30mm
5, special serrated edge design, paint atomization effect is excellent


 bell 30mm, 60mm,
          Max speed 80000rpm
          voltage 0-80kv
        specific air comsumption 20-500Nl/min
        rotational air comsumption 100-1000Nl/min
        paint spit out 0-300cc/min
        dimention 100x500mml
        weight 2.9kgs

Demo performance
