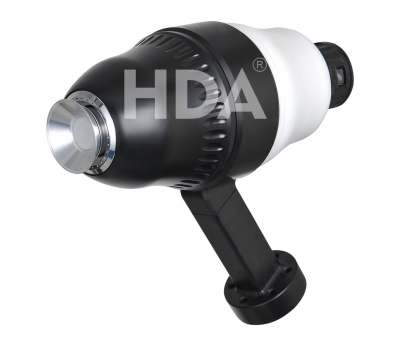

HDA-60 rotary bell liquid electrostatic spray gun

product features:

.HDA-60 high -speed electrostatic rotating bell had outstanding performance, excellent surface quality, hig paint transfer efficiency, and extraordinary service life. its the similar product in the markets in current.

.powerful and reliable, excellent performance air bearing turbine motor, speed up to 70000 rpm, whether conventional paint, high solid paint or water-based paint can achieve hit atomization, to ensure that the system operates under optimal conditions

.



National service hotline:86-13926859125







HDA-60 Rotary bell spray gun product parameter:



atomization  centrifugal force ofturbine motor  driving form  air bearing turbine
Bell dimension Φ20mm, Φ30mm, Φ50mm, Φ65mm spray width  100-500mm
Max output voltage DC-20-80KV max output current  300ua
Max flow rate 500cc/min Max speed  70000rpm/min ( un-load
Max air consumption 1.0Nm3/min length  600mm reciprocation machine
Weigh 5.5kgs electrostatic controller  HAD-201

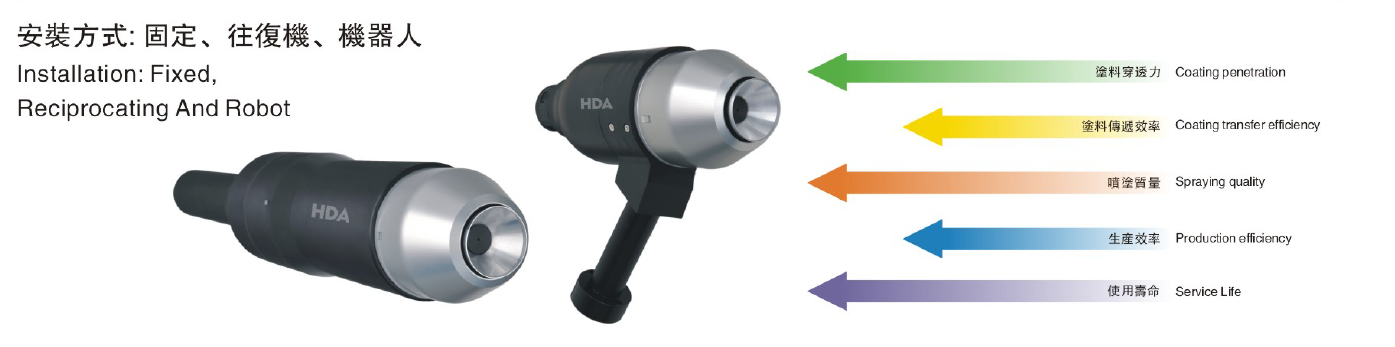

Installation method  Fixed, reciprocation machine ro coating robot

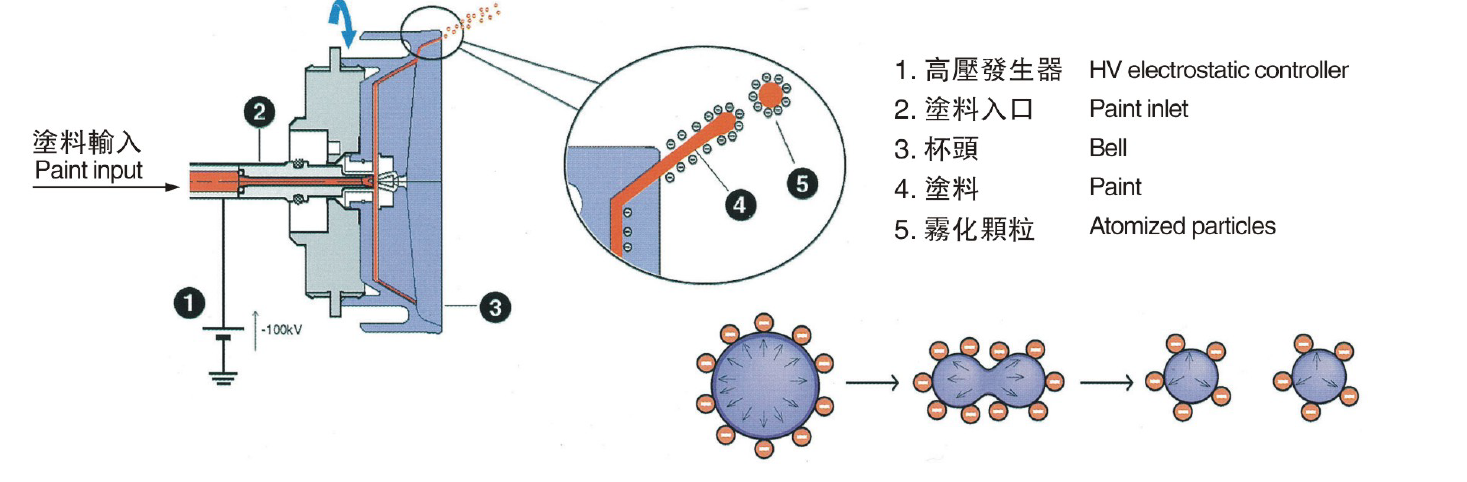

rotary bell gnerallly has three installation methods, fixed, reciprocation machine and coatin robot. paint from the center to the high speed rotating bell head, bell head is charged and 80KV high voltage transmission to the aint, when the paint touches the bell head, charged with high-voltage negative charge, because these charges repel each other, when the paint leaves the bell head, paint particles it is split by the charge into smaller and more uniform particles until the surface tension of the coating is balanced with the charge replusion.



 The combination of electrostatci effect and high -speed rotating centrifugal force produces better and more uniform coating particles, these high-voltage charged particles are attracted to well-grounded workpieces, resulting in excellent surface quality and high coating transfer efficiency.

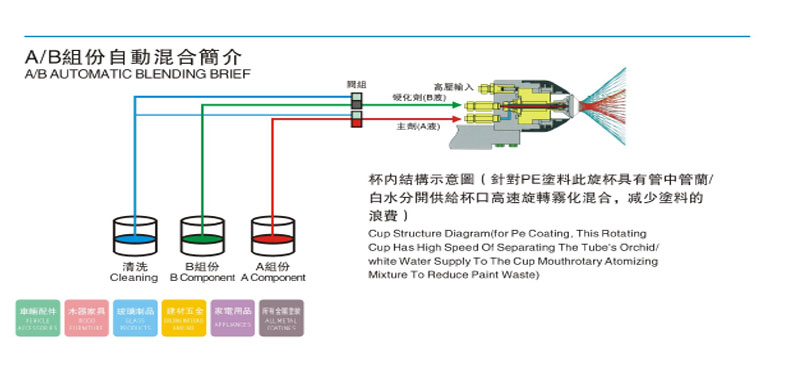

Structural sketch of the bell for PE coatings, rotating bell has a tube orchid/white water spearately supplied to the bell high-speed rotating atomization mixing, reducing waste f the paint.
