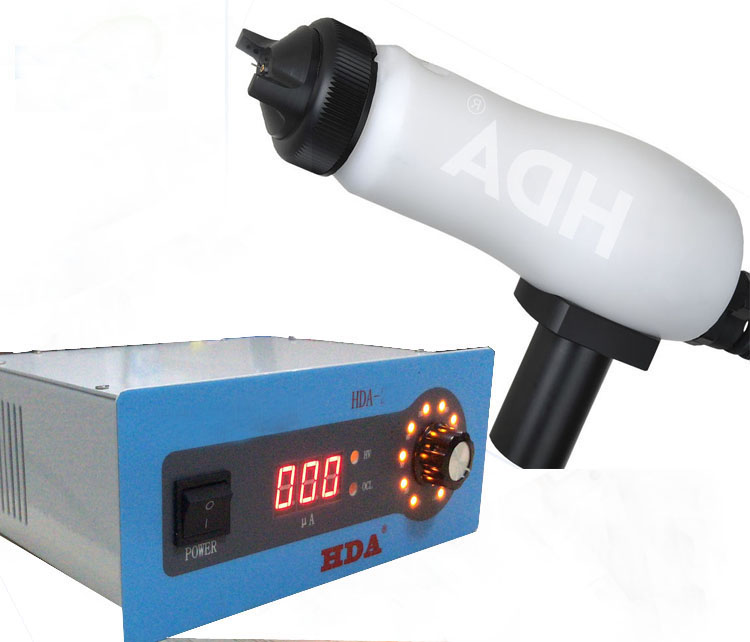

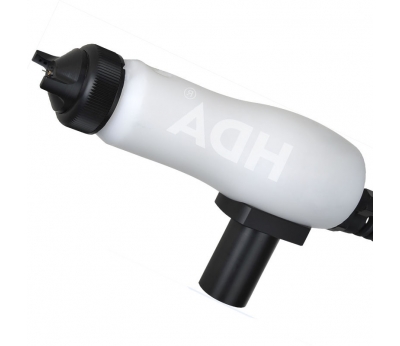

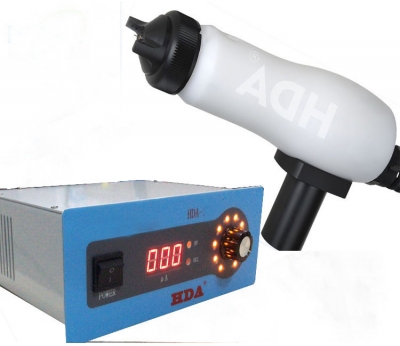

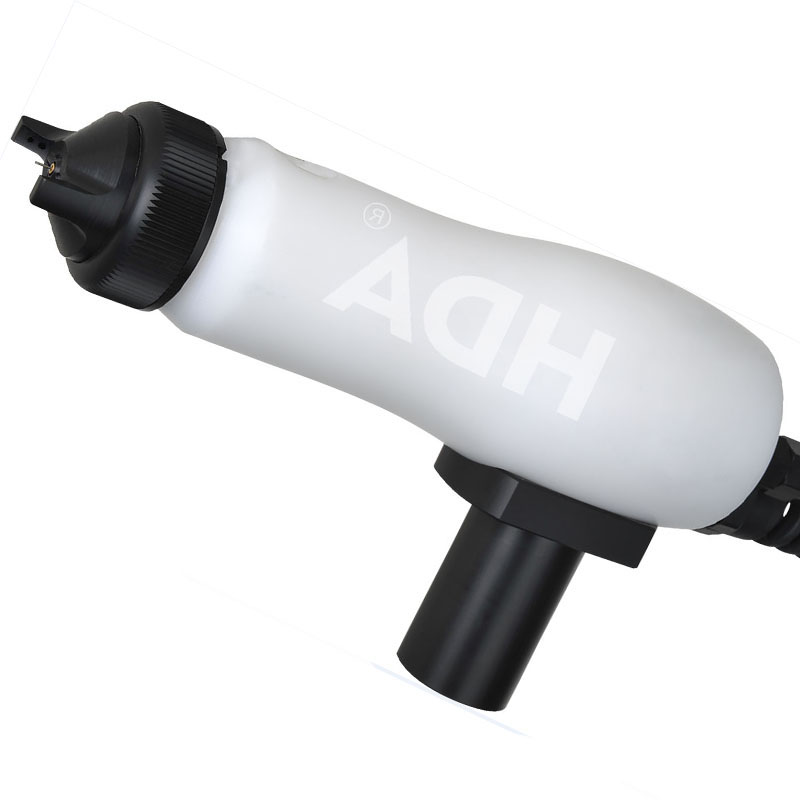

HDA -90B liquid automatic electrostatic spray gun

HDA-90B  automotive spray gun Features



HDA-90B automatic air electrostatic spraying gun suitable for general industry has the advantages of simple structure, easy maintenance, strong penetrating force of paint fog, wide application range of coatings, excellent surface effet, and is the preferred product for large area paint spraying type which needs strong penetrating force of coatings.

National service hotline:86-13926859125



HDA-90B Specifications





Maximum output                                                  80KV



Maximun output current     200ua,300ua ( external)



Maximun spray                                               350mm



Maximum air consumption                    600NL/min



Maximun spit out quantity                          600cc.min



Coating switch                                       external valve



Installation method                              reciprocatin machine and coating robot

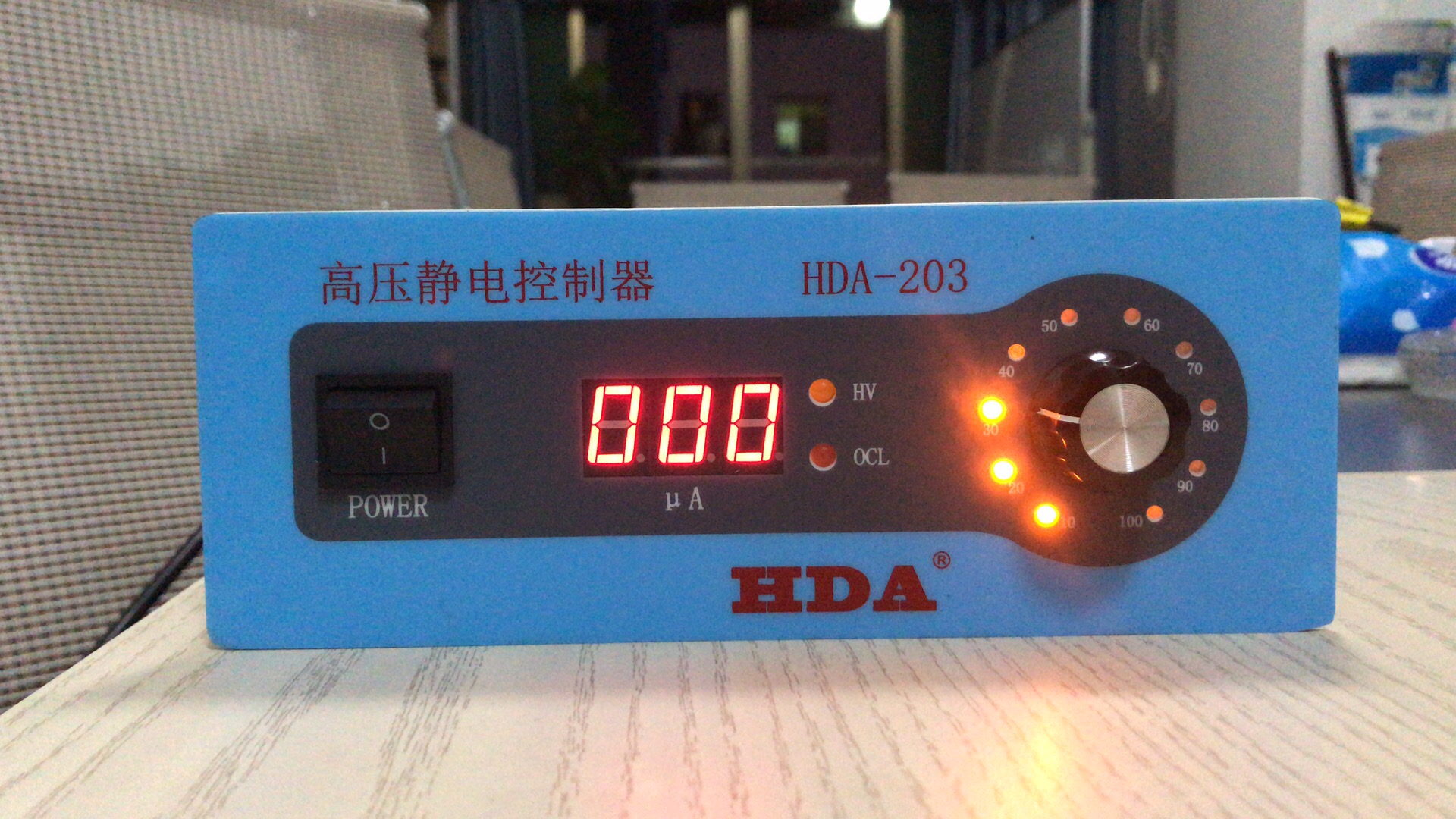

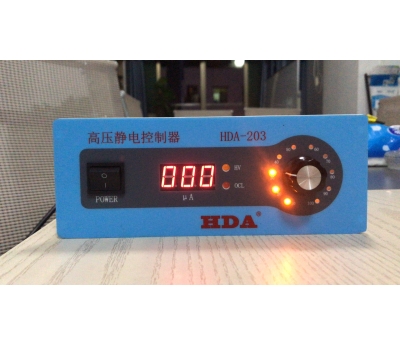

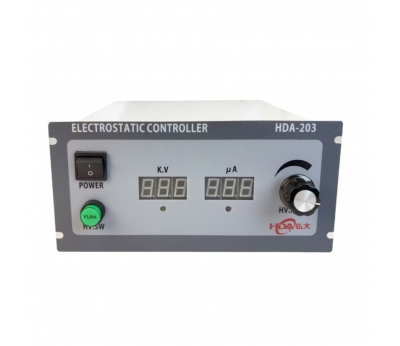

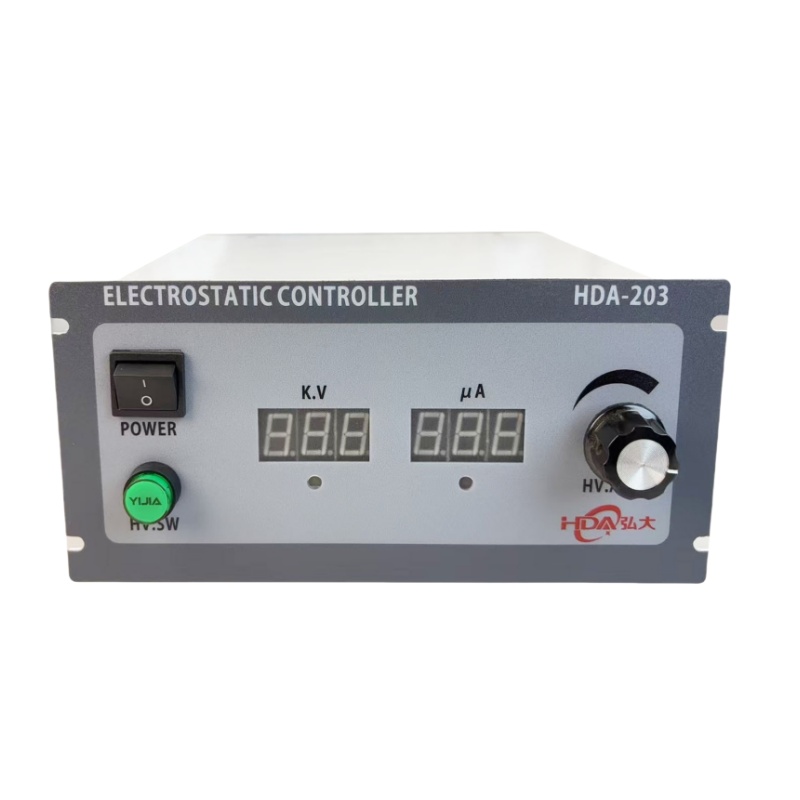

Electrostatic controller for HDA-90B


outup ajustment DC-20-60KV
        voltage  AC24V
Maximum current 80uA
        supply voltage AC220V±10%
        Dimention 260X160X350mm
   application environment temperature 0-45℃
 dampness 20-85℃
        weight 4.5kgs
