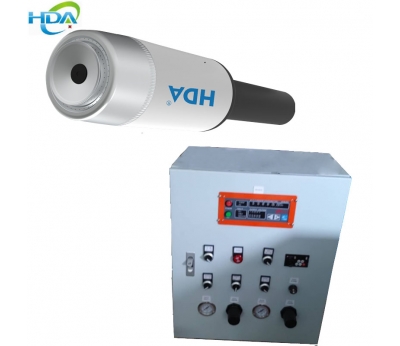

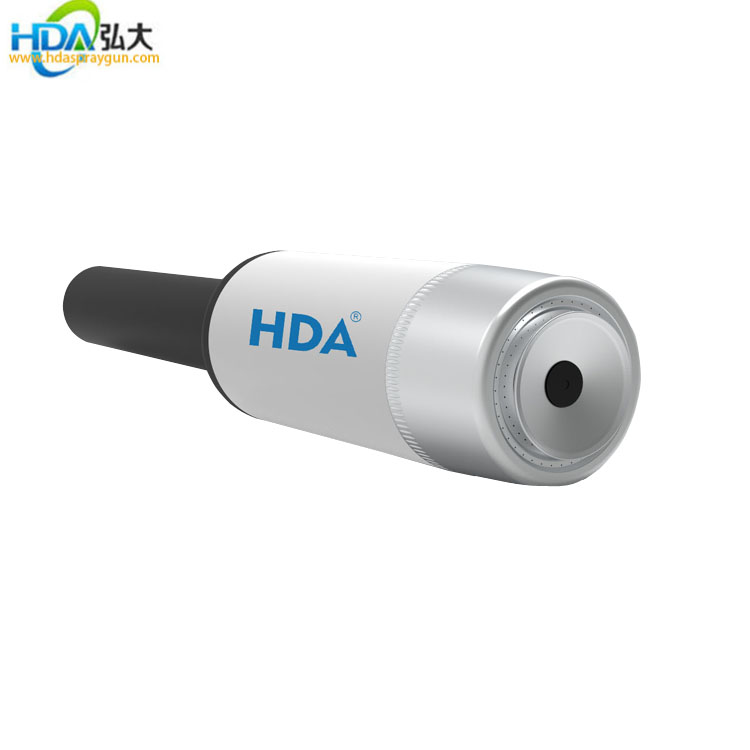

Air turbine bell electrostatic spray gun

The combination of electrostatic effect and high speed coating centrifugal force producesbetter and mre uniform coating particles. these high voltage charged prarticles are attracted to well grounded workpieces, resulting in excellent surface quality and high coating transfer efficiency
National service hotline:86-13926859125

omization  centrifugal force ofturbine motor  driving form  air bearing turbine
Bell dimension Φ20mm, Φ30mm, Φ50mm, Φ65mm spray width  100-500mm
Max output voltage DC-20-80KV max output current  300ua
Max flow rate 500cc/min Max speed  70000rpm/min ( un-load
Max air consumption 1.0Nm3/min length  600mm reciprocation machine
Weigh 5.5kgs electrostatic controller  HAD-201
Installation method  Fixed, reciprocation machine ro coating robot

Roatry bell generally has three installation methods: fixed, reciprocation machine, robot, paintfrom the center to the high speed rotating bell head, bell head is charged and 80KV high voltage transmission to the paint, when the paint touches the bell head. is charged with high voltage negativ charge, because thsescharges reple each other, when the paint leaves the bell head, paint particles it's split by the charge into smaller and nore uniform particles until the surface thnsion of the coating is balanced with the charge repulsion

HDA bell spray gun controler

high voltage

DC-80KV



   high voltage adjustment

15KV-80KV Unsection type




   high voltage switch

Automatic & Manual



   supply voltage

AC110V-240V 50/60HZ

The combination of electrostatic effect and hgh sped rotating centrifugal force producesbetter and more uniform coating particles, the high voltage charged particles are attracted  to wellground ded workpicees, resulting in excellent surface quality and high coating transfer efficiency
