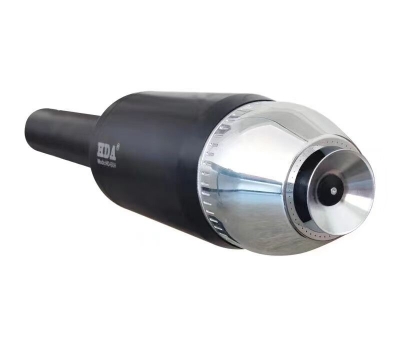

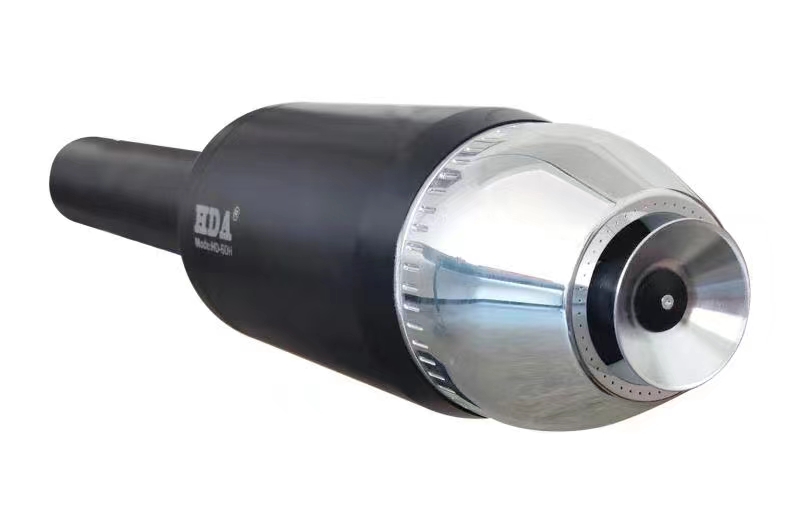

HDA-60 Reciprocating Spray Rotary Bell Electrostatic Automatic Spray Machine

High speed rotating bell electrostatic automatic spraying machine is the good effective spray equipment surface coating

Max outputvoltage:  DC 20-80KV  Max output current:  300ua

Max flow Rate 500cc/cc  Max Speed: 80000Rpm/min

National service hotline:+86 13622624429

The control methods, The high speed rotating bell electrostatic automatic spraying machine is the key equipment to realize the spraying of surface coating.

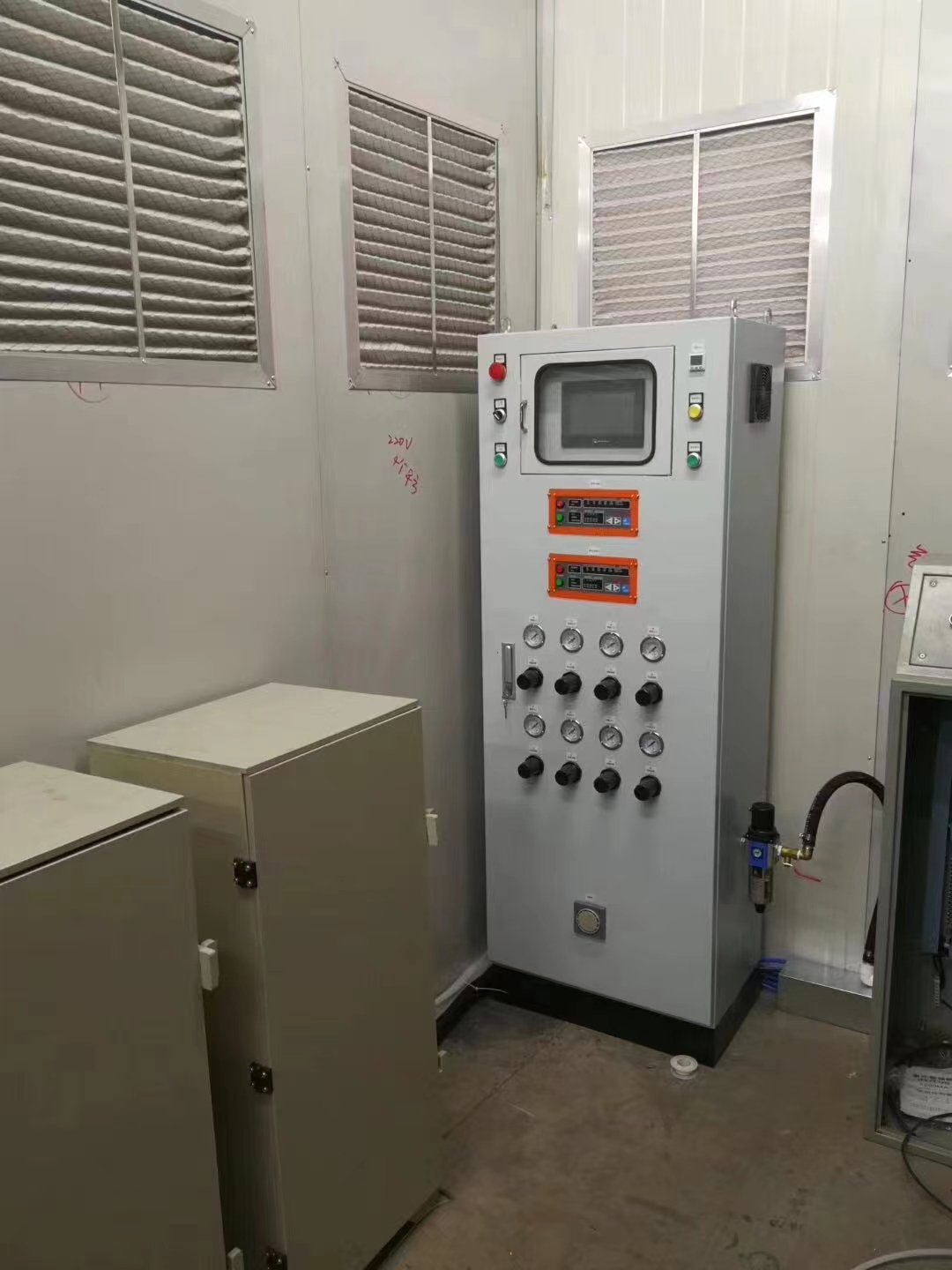

 PLC spray control system |hdaspraygun.com

Control method:

The central spray machine advanced PLC controller, be speed control, air pressure and high voltage control , it can realize the accurate positioning of servo motion axis and workpiece surface profiling, as well as the accurate control of rotor speed and static high voltage. It also has the function of real-time monitoring of spraying process through windows operating system. Practical application junction.

The control system works stably reliably, and the spraying effect meets the technical requirements. the  spray machine, PLC controller, servo control: pneumatic bearing turbine.

High speed rotating bell electrostatic automatic spraying effect of spray parameters on spraying and its influence on paint spraying technology coating structure measurement of shaped air rotational speed of rotating cups spraying distance high pressure spraying parameters viscosity of paint solid content solvent type quantity density surface tension base material system. reciprocating side spray machine. The reciprocating spray machine is the  advanced PLC controller, speed control and high voltage control, it can realize the accurate positioning of servo motion axis and body surface profiling, as well as the accurate control of rotor speed and static high voltage. It also has the function of real-time monitoring of spraying process through windows operating system. Practical application junction.

The results show that the control system works stably reliably, and the spraying effect meets the technical requirements. the reciprocating  spray machine, PLC controller, servo control: pneumatic bearing turbine.

 auto spray gun manufacture | hdaspraygun.com

High speed rotating bell electrostatic automatic spraying effect of spray parameters on spraying and its influence on paint spraying technology coating structure measurement of shaped air rotational speed of rotating cups spraying distance high pressure spraying parameters viscosity of paint solid content solvent type quantity density surface tension base material system.

electrostatic spray gun | hdaspraygun.com


Amortization
ofturbine motor  driving form  air bearing turbine
Bell dimension Φ20mm, Φ30mm, Φ50mm, Φ65mm spray width  100-500mm
Max output voltage DC-20-80KV max output current  300ua
Max flow rate 500cc/min Max speed  70000rpm/min ( un-load
Max air consumption 1.0Nm3/min length  600mm reciprocation machine
Weigh 5.5kgs electrostatic controller  HAD-203
Installation method  Fixed, reciprocation machine ro coating robot

Roatry bell generally has three installation methods: fixed, reciprocation machine, robot, paintfrom the center to the high speed rotating bell head, bell head is charged and 80KV high voltage transmission to the paint, when the paint touches the bell head. is charged with high voltage negativ charge, because thsescharges reple each other, when the paint leaves the bell head, paint particles it's split by the charge into smaller and nore uniform particles until the surface thnsion of the coating is balanced with the charge repulsion
