HDA-60 bell spray gun for small metal parts spraying

automatic liquid  rotary bell electrostatic spraying system for small metal parts paint spraying, contact us for more information for automatic reciprocating spraying | hda-sl01@hongdapt.com

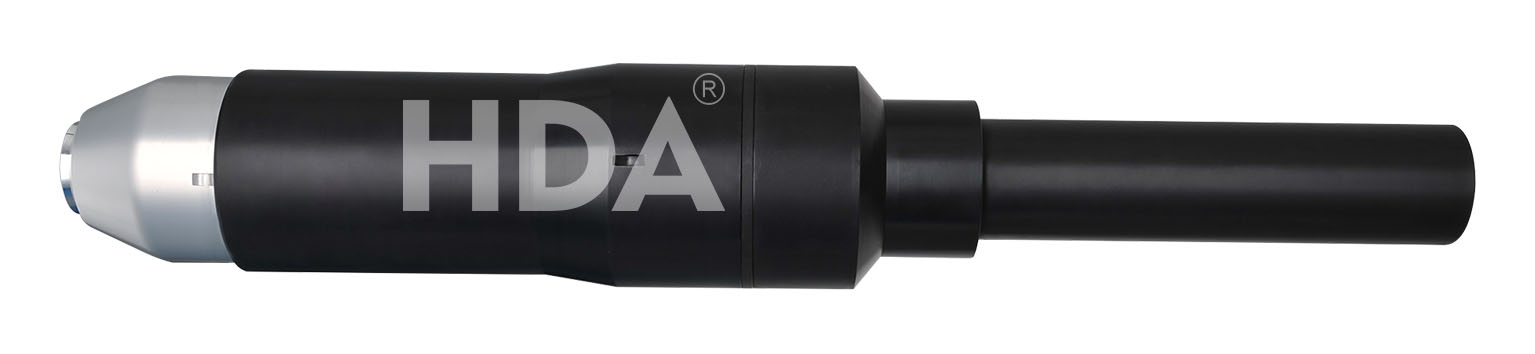

HDA-60 rotary bell liquid electrostatic spray gun

product features:

.HDA-60 high -speed electrostatic rotating bell had outstanding performance, excellent surface quality, hig paint transfer efficiency, and extraordinary service life. its the similar product in the markets in current.

.powerful and reliable, excellent performance air bearing turbine motor, speed up to 70000 rpm, whether conventional paint, high solid paint or water-based paint can achieve hit atomization, to ensure that the system operates under optimal conditions



HDA liquid electrostatic spray gun




HDA-60 Rotary bell spray gun product parameter:



atomization centrifugal force ofturbine motor driving form air bearing turbine
Bell dimension Φ20mm, Φ30mm, Φ50mm, Φ65mm spray width 100-500mm
Max output voltage DC-20-80KV max output current 300ua
Max flow rate 500cc/min Max speed 70000rpm/min ( un-load
Max air consumption 1.0Nm3/min length 600mm reciprocation machine
Weigh 5.5kgs electrostatic controller

HAD-201


Installation method

Fixed, reciprocation machine ro coating robot
