A pakistan customer was recommend by zhè jiāng china power coating equipment factory for HDA liquid electrostatics spray gun . during then meeting we recognize the liquid electrostatic spraying in Pakistan is beginning

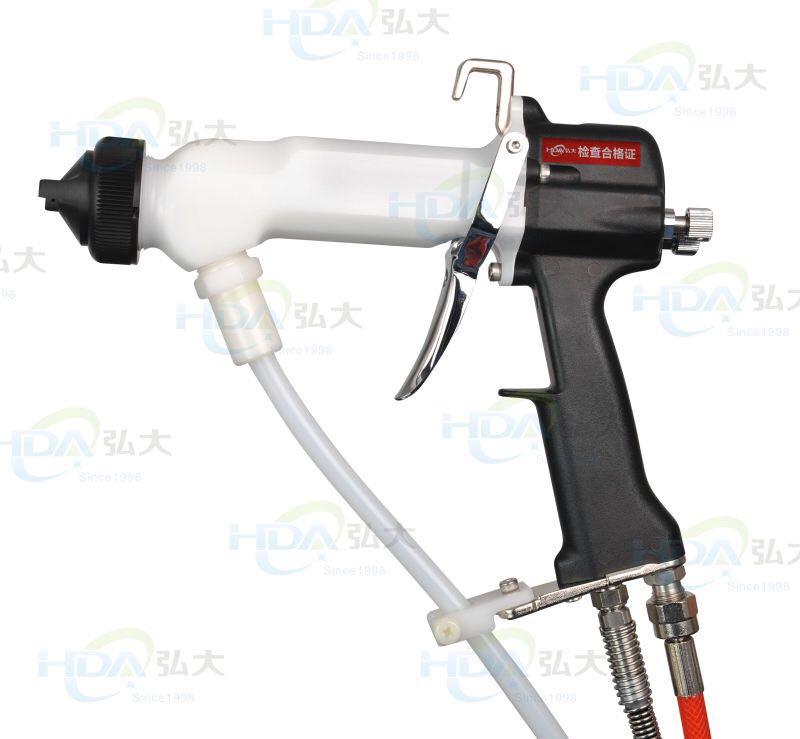

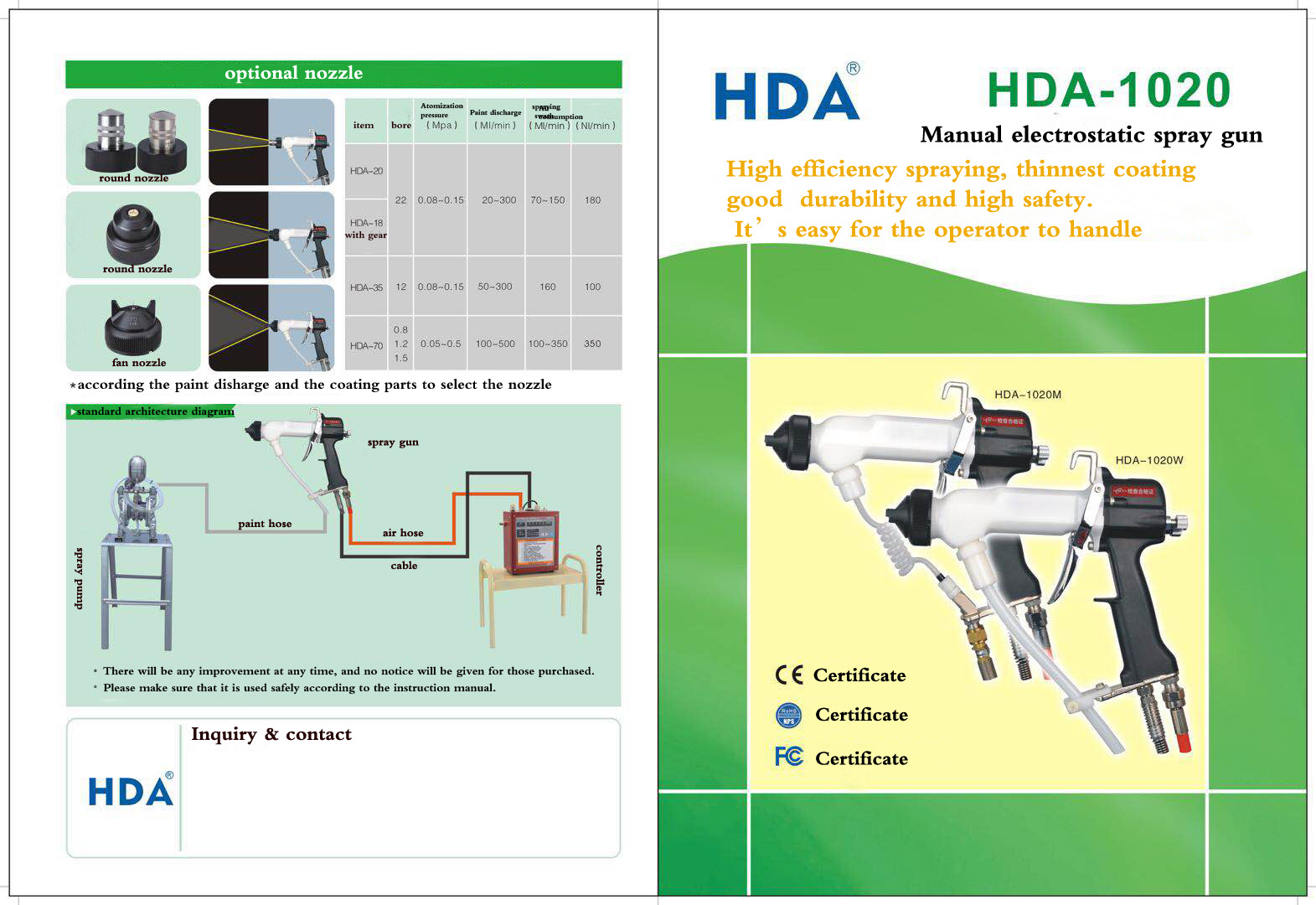

HONGDA HDA -1020 Manual electrostatic gun specification
| Max voltage | DC-60KV | |
| hydraulic pressure | Max | 0-0.3Mpa |
| standard | 0.6Mpa | |
| air pressure | Max | 0.05-0.4Mpa |
| standard | 0.06Mpa | |
| air consumption | 350N1/mm | |
| air bore | screw bore PF 1/4 | |
| paint bore | screw bore PF 1/4 | |
| Length | 231mm | |
| supply cable (standard) | 5M/8M/30M | |
| weight(without nozzle & cables) | 490g | |

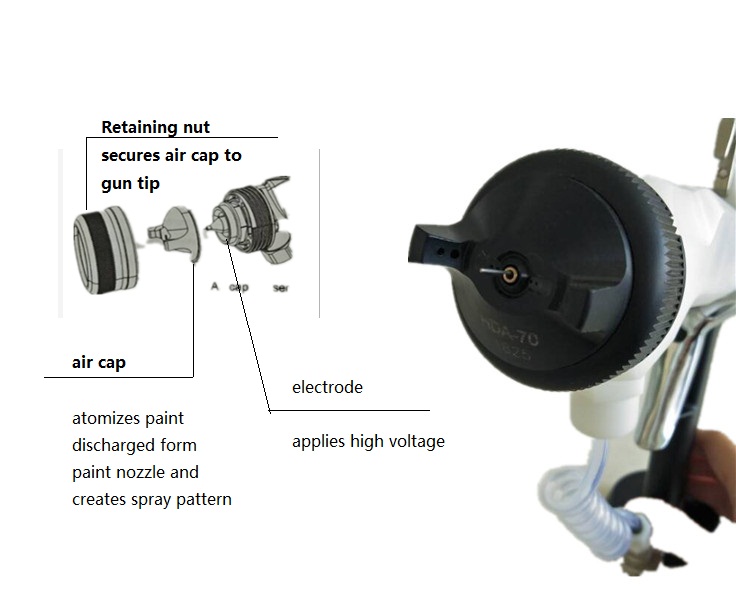

Retaining nut
secures air cap to gun tip
paint nozzle
discharges paint
air cap
