High atomization manual electrostatic paint spray gun|hdaspraygun

Source: hongda Browse:2246 The release date:2023.05.08 [ Large medium small ]

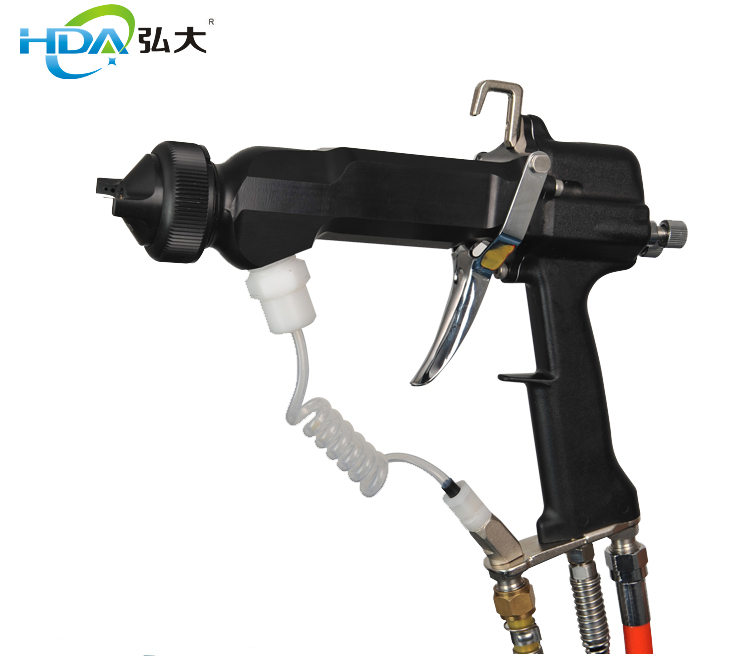

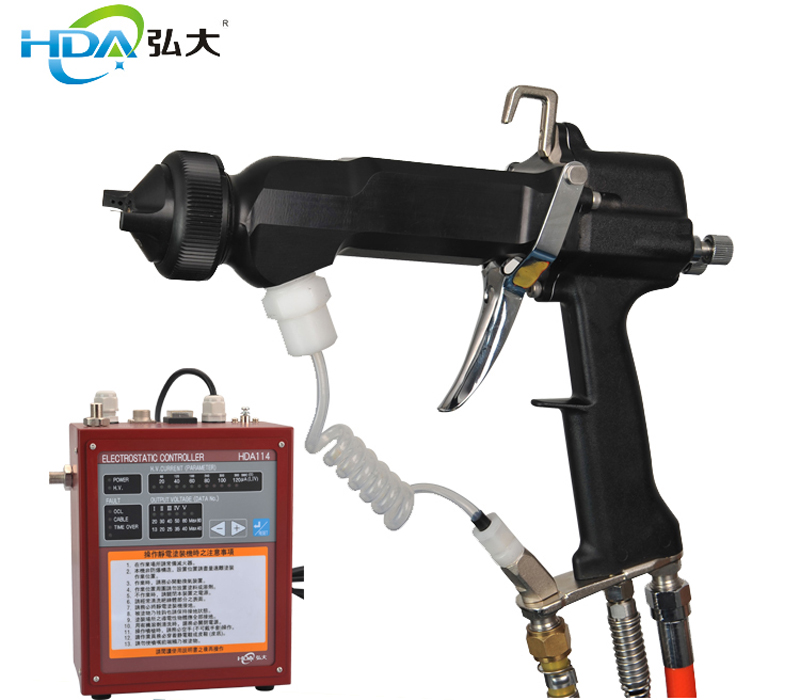

HDA-1020 electrostatic spray gun High atomization manual electrostatic paint spray gun Hongda electrostatic spray gun

The HDA-1020 built-in high-voltage electrostatic spray gun is a lightweight high-voltage electrostatic spray gun designed based on the coating industry spraying technology of Japan's ASAHI electrostatic gun, The discharge capacity of the spray gun has been greatly improved compared to the old model spray gun (traditional neutral spray guns cannot meet the requirements), which meets the requirements of spraying on-site construction (the viscosity of the paint does not affect it). The static electricity effect is also set based on the experience of painting construction, and the built-in high voltage will not be affected by the length of the spray gun pipeline required at the construction site. * * * The spray gun has a good static effect, The HDA-114 electrostatic generator is equipped with four alarm devices to enhance the safety performance of construction. The equipment is equipped with an automatic power off system to automatically turn off the power after alarm


HDA 1020  air electrostatic spray gun
is used in liquid electrostatic spraying. It is aimed at: conventional oily coating solvent based coating, common (PU polyurethane paint, UV curing paint, acrylic paint, etc.) application industry: hardware, wood, sports equipment, automobile, etc.

HDA electrostatic spray gun |hdaspraygun

HONGDA HAD-1020 Manual electrostatic spray gun specifications:


Use paint

All conductive coatings / general coatings / metal paints

Model

HDA-1020

Voltage Max

DC-60KV

Hydraulic pressure

Common

0-0.3MPa

Max

0.6 MPa

Air pressure

Common

0.05-0.4 MPa

Max

0.6 MPa

Air consumption

350N1/min(ANR)

Air inlet

Screw diameter PF1/4

Paint entrance

Screw diameter  PF1/4

Full length (HDA-70)

231mm

Length of connecting cable

5m 8m (Max 30m)

Weight (without cable))

490g


product application

1.Car coating:car body,car parts,larger container,plastic components

2.coating electric machinery coating:Switchboard, control panel, air conditioning machine, OA machinery,     household electrical appliances

3. building materials, furniture: office machinery, steel furniture, doors and windows, walls, building materialsMachinery coating:construction machinery,grinding machinery,production machinery.

4.others:hardware coating,painting and wooden products coating;

5.Glass bottle coating, glass perfume bottle coating, glass cosmetics bottle and glass wine bottle coating

air electrostatic spray gun parts|hdaspraygun

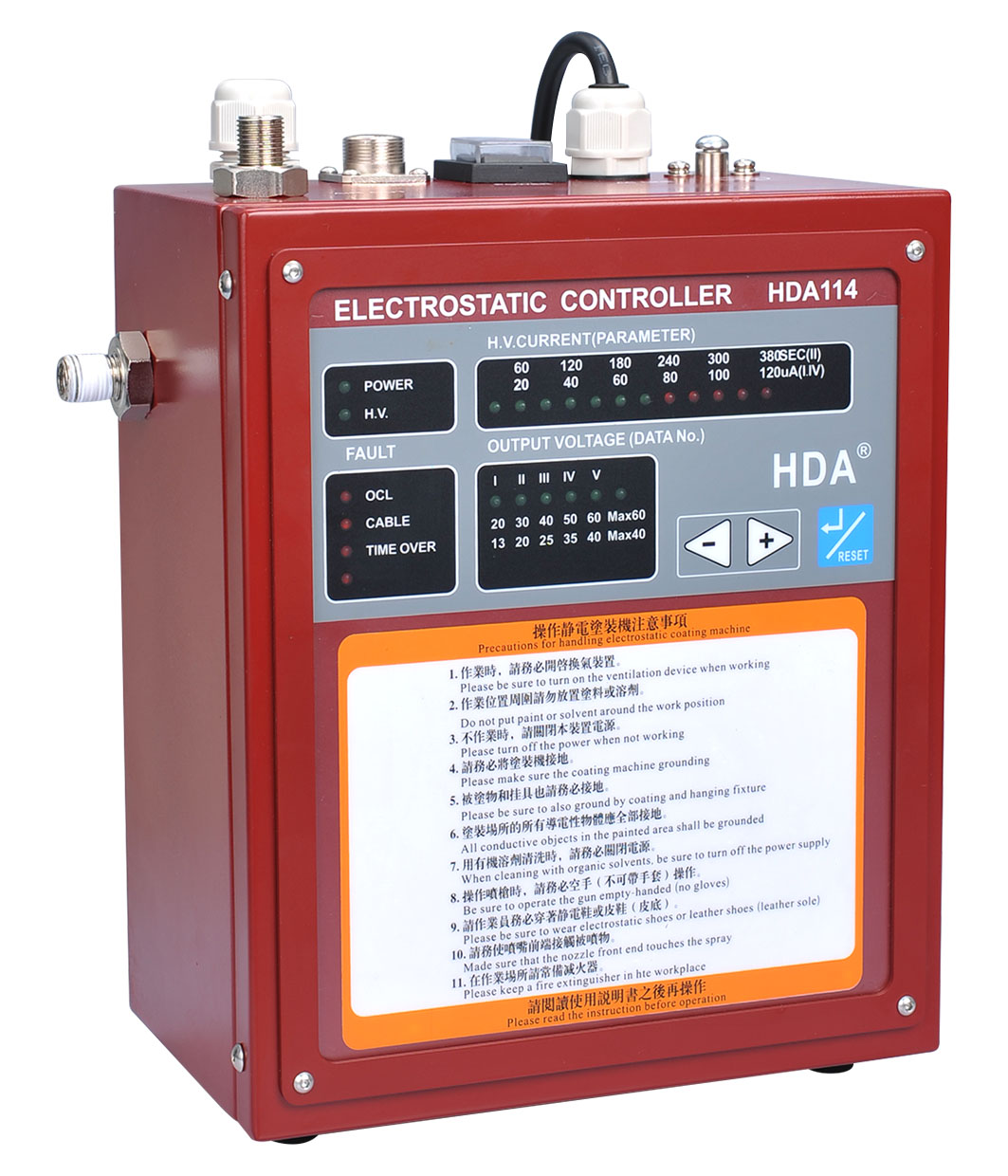

HDA114  electrostatic controller for HDA-1020 Manual electrostatic gun specifications:


output adjustment

DC-20-60KV

voltage

AC24V

Maximum current

80uA

supply voltage

AC220V±10%

Dimension

260X160X350mm

application environment

temperature 0-45℃

dampness 20-85℃

weight

4.5kgs


Hongda HDA-1020 new built-in electrostatic spray gun, lightweight, reasonable structure, good effect, fast electrostatic coating

Enterprise idea:

• more flexible technology applications

Higher reliability

• constantly meet the individual needs of customers

Flexible installation

• first-class cross regional service level

Major business:

Liquid, automatic, rotary cup, manual electrostatic spray gun, DISK bell electrostatic spraying system

Pneumatic double diaphragm pump, pressure drum, agitator, coating tube, etc.

Providing all kinds of spraying parts and maintenance services



In the procurement of built-in high voltage electrostatic spray gun, our technicians will be based on your products, coatings and spray process for your tailor-made

Hongda, spraying procurement consultant electromechanical products -- could be your intimate, let you rest assured purchase!

Professional supplier, electrostatic spray gun, hongda HDA is a good choice for you!
