How to connect the electrostatic rotary bell to the central control cabinet and how it work?

Source: hongda Browse:1051 The release date:2022.07.12 [ Large medium small ]

Especially in recent years, when the factory has no way to install automatic spraying equipment at the spraying site, many use are worried about how to install automatic electrostatic rotary bell spray guns by themselves. now here is the way for you to understan how by HDA spray guns China manufacture

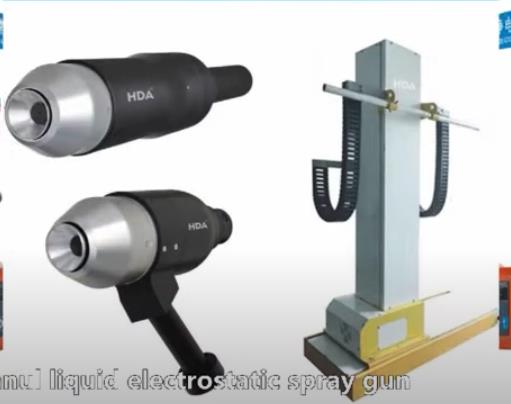

Powerful and reliable, good performance air turbine high speed 80000Rpm roating. 80KV Max Voltage, 300-500mm spray width, and 500cc Max flow.

Amortization
ofturbine motor driving form air bearing turbine
Bell dimension Φ20mm, Φ30mm, Φ50mm, Φ65mm spray width 100-500mm
Max output voltage DC-20-80KV max output current 300ua
Max flow rate 500cc/min Max speed 80000rpm/min ( un-load
Max air consumption 1.0Nm3/min length 600mm reciprocation machine
Weigh 5.5kgs electrostatic controller HAD-203
Installation method Fixed, reciprocation machine ro coating robot

Roatry bell generally has three installation methods: fixed, reciprocation machine, robot, paintfrom the center to the high speed rotating bell head, bell head is charged and 80KV high voltage transmission to the paint, when the paint touches the bell head. is charged with high voltage negativ charge, because thsescharges reple each other, when the paint leaves the bell head, paint particles it's split by the charge into smaller and nore uniform particles until the surface thnsion of the coating is balanced with the charge repulsion
