product features:

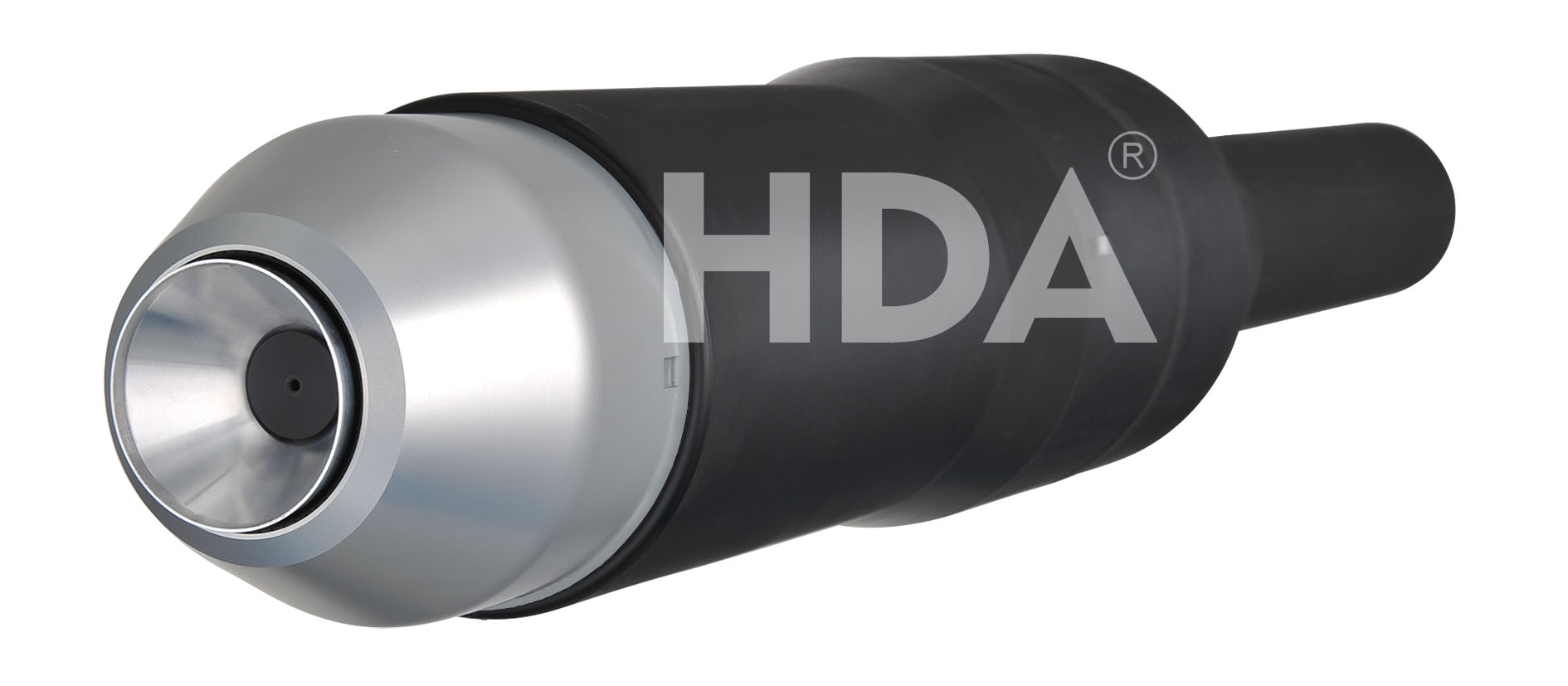

.HDA-60 high -speed electrostatic rotating bell had outstanding performance, excellent surface quality, hig paint transfer efficiency, and extraordinary service life. its the similar product in the markets in current.

.powerful and reliable, excellent performance air bearing turbine motor, speed up to 70000 rpm, whether conventional paint, high solid paint or water-based paint can achieve hit atomization, to ensure that the system operates under optimal conditions

HDA-60 Rotary bell spray gun product parameter:

Previous:HDA -60 liquid automatic rotary bell spraying system |

Next:HDA-1020 manual liquid electrostatic spray gun for wooden doors liquid coating

Other Project

atomization	centrifugal force ofturbine motor	driving form	air bearing turbine
Bell dimension	Φ20mm, Φ30mm, Φ50mm, Φ65mm	spray width	100-500mm
Max output voltage	DC-20-80KV	max output current	300ua
Max flow rate	500cc/min	Max speed	70000rpm/min ( un-load
Max air consumption	1.0Nm3/min	length	600mm reciprocation machine
Weigh	5.5kgs	electrostatic controller	HAD-201
Installation method	Fixed, reciprocation machine ro coating robot
