electrostatic automatic spraying machine is an effective spray equipment for surface coating. Here are some key details about it:

Max Output Voltage: DC 20-80KV

Max Output Current: 300ua

Max Flow Rate: 500cc/cc

Max Speed: 80,000 Rpm/min

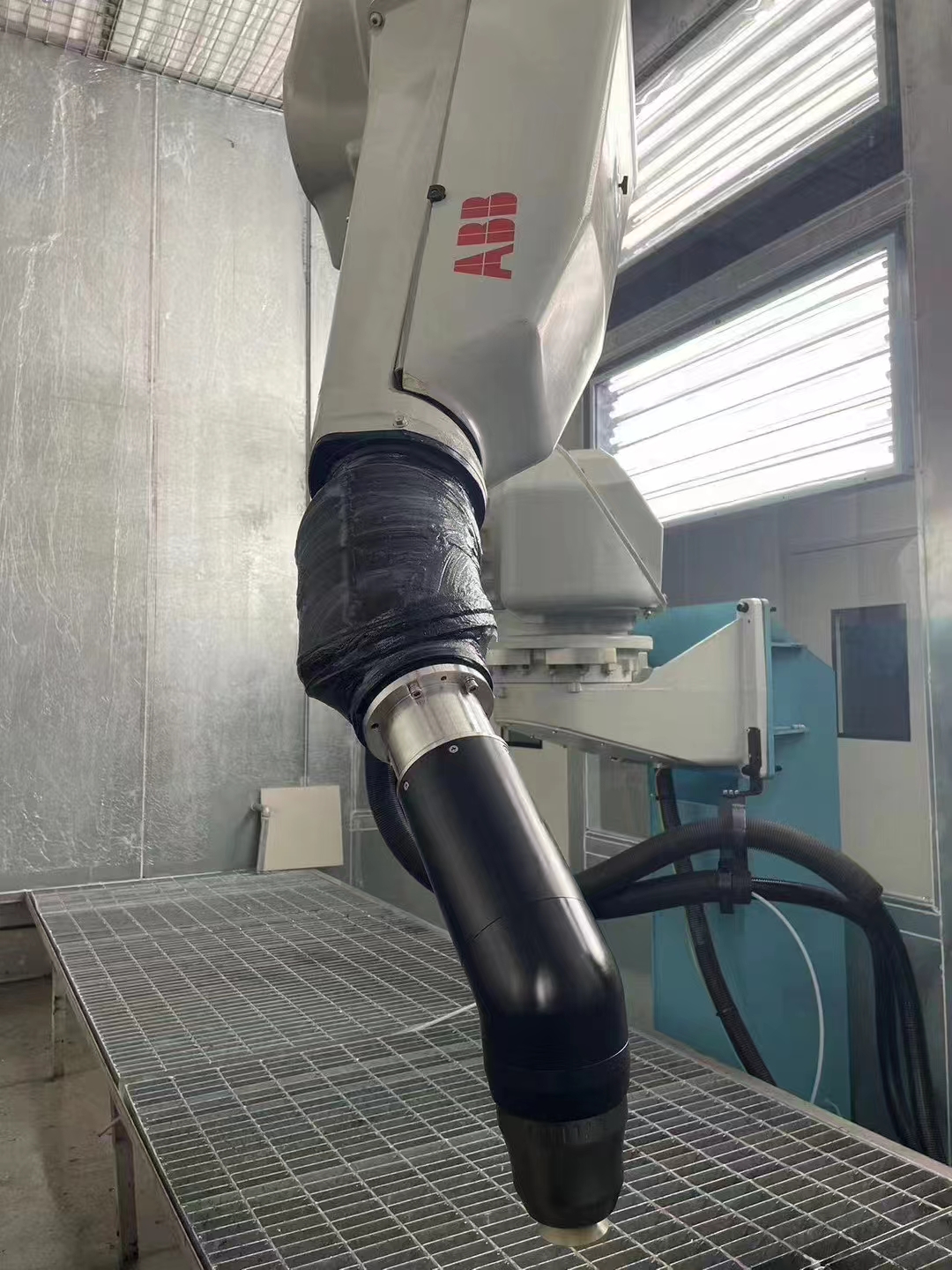

The HDA liquid electrostatic rotary bell generally has three installation methods: fixed, reciprocation machine, and coating robot. In the case of the HDA-60, paint flows from the center to the high-speed rotating bell head. The bell head is charged with 80KV high voltage, which is transmitted to the paint. When the paint touches the bell head, it becomes negatively charged due to the high voltage. These charged particles repel each other, causing the paint to split into smaller and more uniform particles as it leaves the bell head. The combination of electrostatic effect and high-speed rotating centrifugal force results in better and more uniform coating particles. These high-voltage charged particles are attracted to well-grounded workpieces, leading to excellent surface quality and high coating transfer efficiency.

The HDA-60 high-speed rotating bell electrostatic automatic spraying machine offers outstanding performance, excellent surface quality, high paint transfer efficiency, and an extraordinary service life. It is a reliable choice for surface coating applications
