HDA spray gun specialized in manufacturing electrostatic spray guns, manual electrostatic spray, automatic electrostatic spray gun, electrostatic rotary bell spray gun and gear pumps, liquid coating system, electrostatic spray coating machine.
The HDA electrostatic spray guns always with good reputation and regular orders every month form our overseas distributors, also been sold to Germany, Italy, Australia, Moldova, Uzbekistan, Egypt and Russia etc.
HDA have high qualification of overseas sales with rich experience to guided any new customer from zero to professional to handle the HDA spray guns installation, adjustment and operation.
As the Russia coating industry was use Graco spray guns, Nordson, and Ransburg electrostatic spray guns, but as during the war with Ukraine and start to looking for the China electrostatic spray guns factory to instead them.

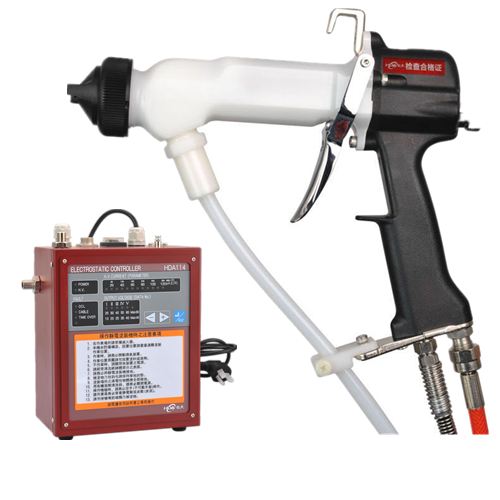

The HDA-1020 is the best choose in manual electrostatic spray guns.
High efficiency – save paint - environmental protection - low pressure atomization
High efficiency coating and outstanding operability
The new design is lighter, more flexible, more suitable for long time spray use
• excellent paint effect, more efficient paint
• contribution to environmental improvement and VOC mitigation! *VOC: volatil
The HDA -1020 manual electrostatic gun application
1. Automobile spraying: auto parts, lager metal parts, container body, and any plastic components manual coating.
2. Machinery spraying: metal machinery cage, OA machinery, control panel, condition machine, household spraying.
3. Raw materials spraying: furniture wood parts, steel door and windows, metal bar, Aluminum bar spraying,construction materials spraying.
4.others:hardware coating,painting and wooden products coating;
5.Glass bottle coating, glass perfume bottle coating, glass cosmetics bottle and glass wine bottle coating
HONGDA HAD-1020 Manual electrostatic spray gun date:
Paint apply |
All conductive coatings / general coatings / metal paints |
|
Model |
HDA-1020 |
|
Voltage Max |
DC-60KV |
|
Hydraulic pressure |
Standard |
0-0.3MPa |
Max |
0.6 MPa |
|
Air pressure |
Standard |
0.05-0.4 MPa |
Max |
0.6 MPa |
|
Air consumption |
350N1/min(ANR) |
|
Air hose connection port |
Screw diameter PF1/4 |
|
Paint hose connection port |
Screw diameter PF1/4 |
|
Full length (HDA-70) |
231mm |
|
Length of connecting cable |
5m 8m (Max 30m) |
|
Weight (without cable)) |
15kgs included gun and controller cables (air +paint hose and power cable) 10mets standard. |

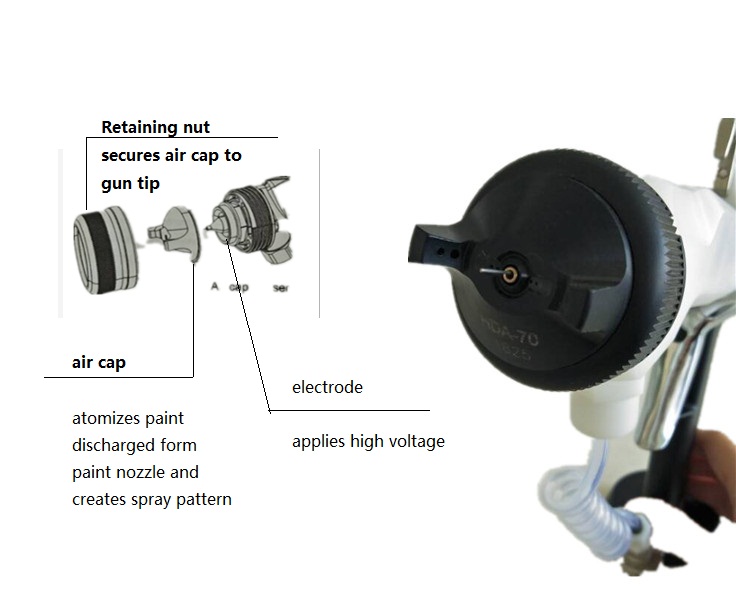

Optional electrostatic spray nozzle it depend on what parts going to spraying. Find the following spray nozzle’s details:
it is the high competitive spray gun for you to choose in Russia coating industry.
If here any questions please contact Croesus for more details and for your ODM spray guns making if in need.
