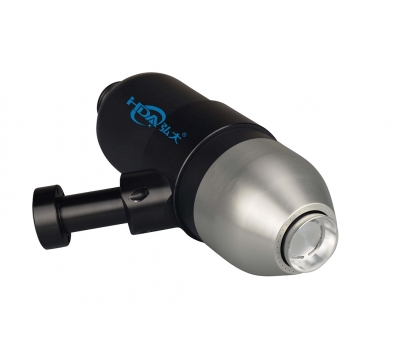

HONGDA rotary bell electrostatic spray gun

Effect of coatings on the rotary cup high speed rotating centrifugal force, by rotating the cup around the fiber from the cup filiform denticulate, centrifugal force and high charge under the action of coating particles, spray evenly distributed in space. The coating is effectively adsorbed on the workpiece with positive charge by carrying the high voltage negative charge, the coating efficiency is greatly improved, the coating film is even, and the coating film is enhanced.

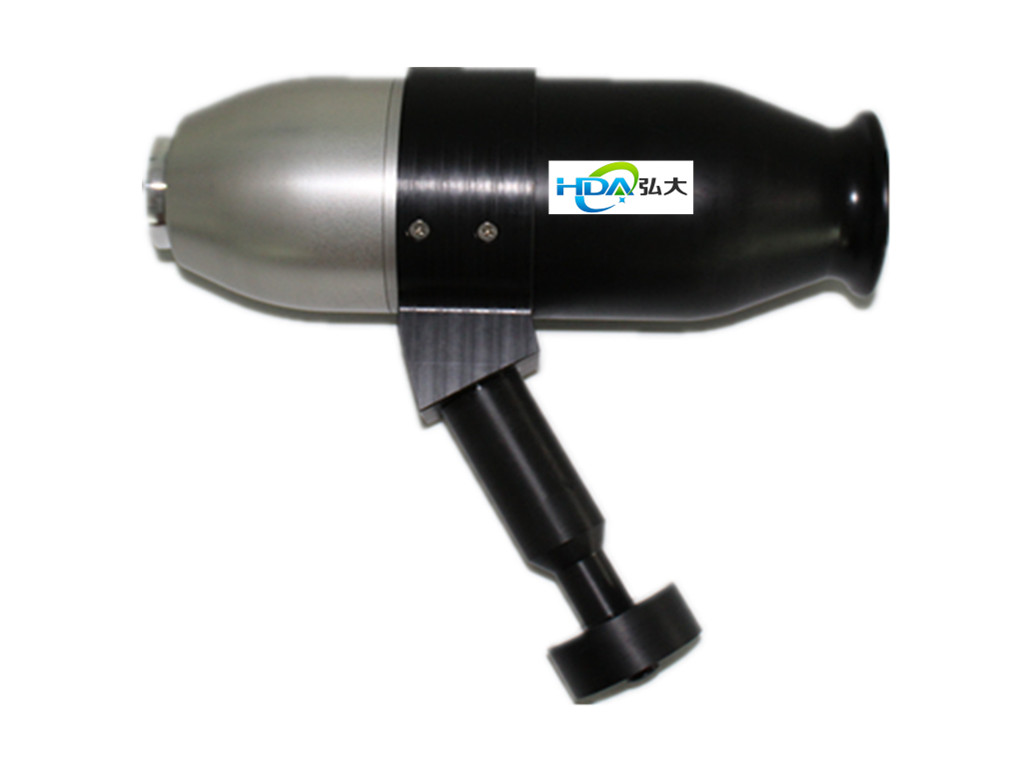

Parameters of air flotation cup for HDA-60 manipulator:

1, model: HDA-60
2, work pressure (MAX),:DC, -80KV, can be adjusted.
3 、 high voltage generator: external type
4, rotational speed (no-load): 80000rpm MAX.
5 、 drive form: air bearing motor
6, weight: 2.9KG

Air pressure:
1, turbine motor: 550ml/min - 42000rpm (400l/min)
2, air bearings: 60l/min (normal)
3, forming air: 170 - 540l/min (normal)
4, air brake: 100l/min (normal)
Characteristics of electrostatic spraying machine for air operated rotary cup for HDA-60 mechanical arm:
1. Coating pressure: 0.69MPA max.
2, paint flow: 25-600cc./min
3, high performance air turbine motors: long life design

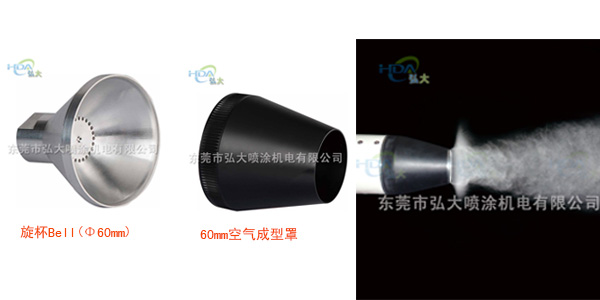

4, cup: 30mm
5, special serrated edge design, paint atomization effect is excellent

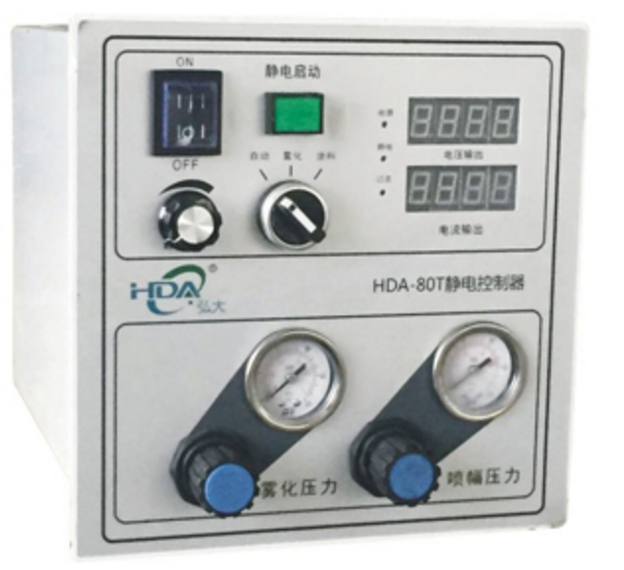

automatic rotary bell electrostatic spray paint gun controller

1) spinning wheel electrostatic spray gun unit speed, pressure adjustment, forming air adjustment

 2) electrostatic high voltage switching off adjustment

 3) function of paint switch gun

 4) electrostatic switch and the size of the regulating voltage

5) manual / automatic switching function

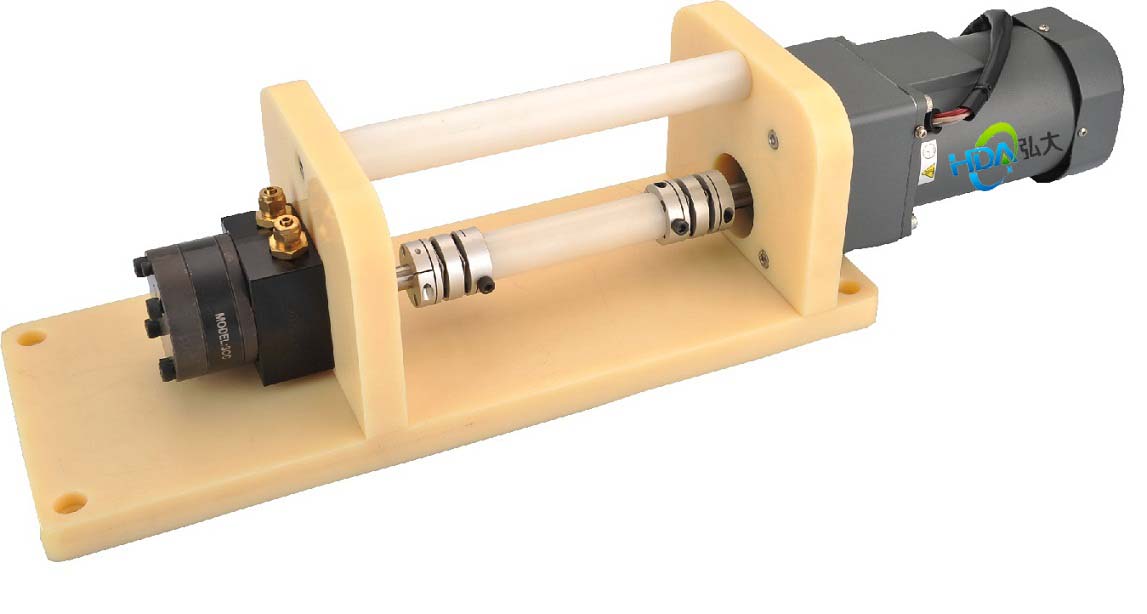

electrostatic spray gun gear pump

AC drive motor 120W 3 phase 220V;

1)   gear pump rack and insulation cabinet;

2) suction and return piping;

3)  ) Taiwan Shihlin frequency controller (control paint highlight size)

4)   Characteristic：

5)   high precision paint stable transportation can be carried out quantitatively.

6)   not easy to be affected by paint viscosity change.

7)   according to the required thickness of the film, the precise setting of the amount of spitting can be carried out.

8)  using precision gear pump with excellent wear resistance.

9)   simple operation, convenient for on-site personnel control.

10) suitable for waterborne coatings.

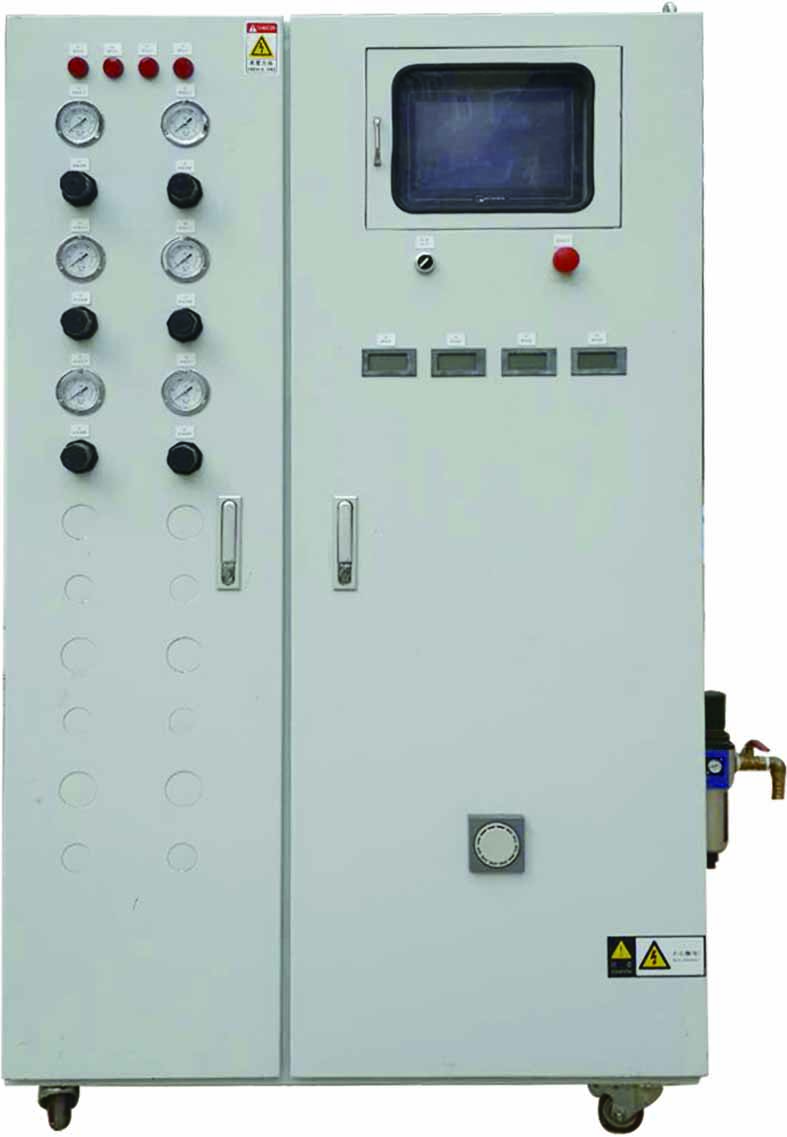

Control oven:

1) spinning wheel electrostatic spray gun unit speed, pressure adjustment, forming air adjustment

1） 2) electrostatic high voltage switching off adjustment

2） 3) function of paint switch gun

3） 4) electrostatic switch and the size of the regulating voltage

5) manual / automatic switching function

spraying Demo performance:
